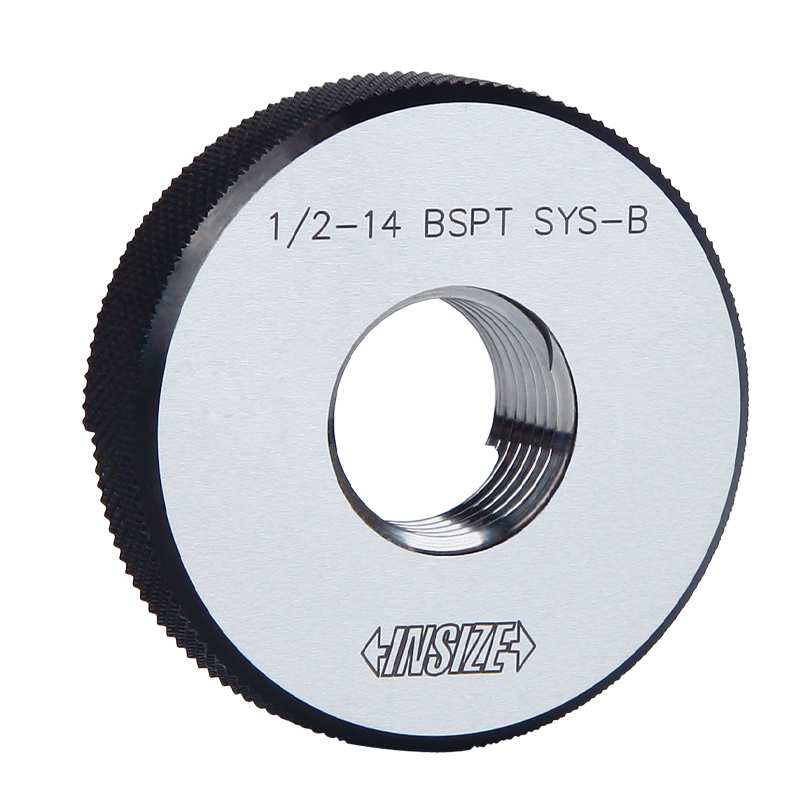

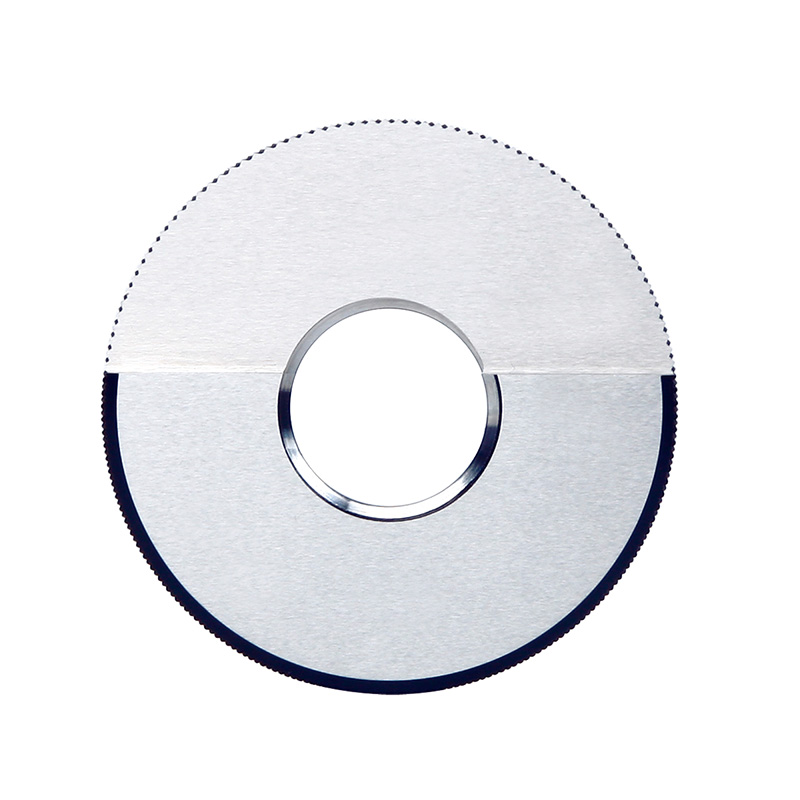

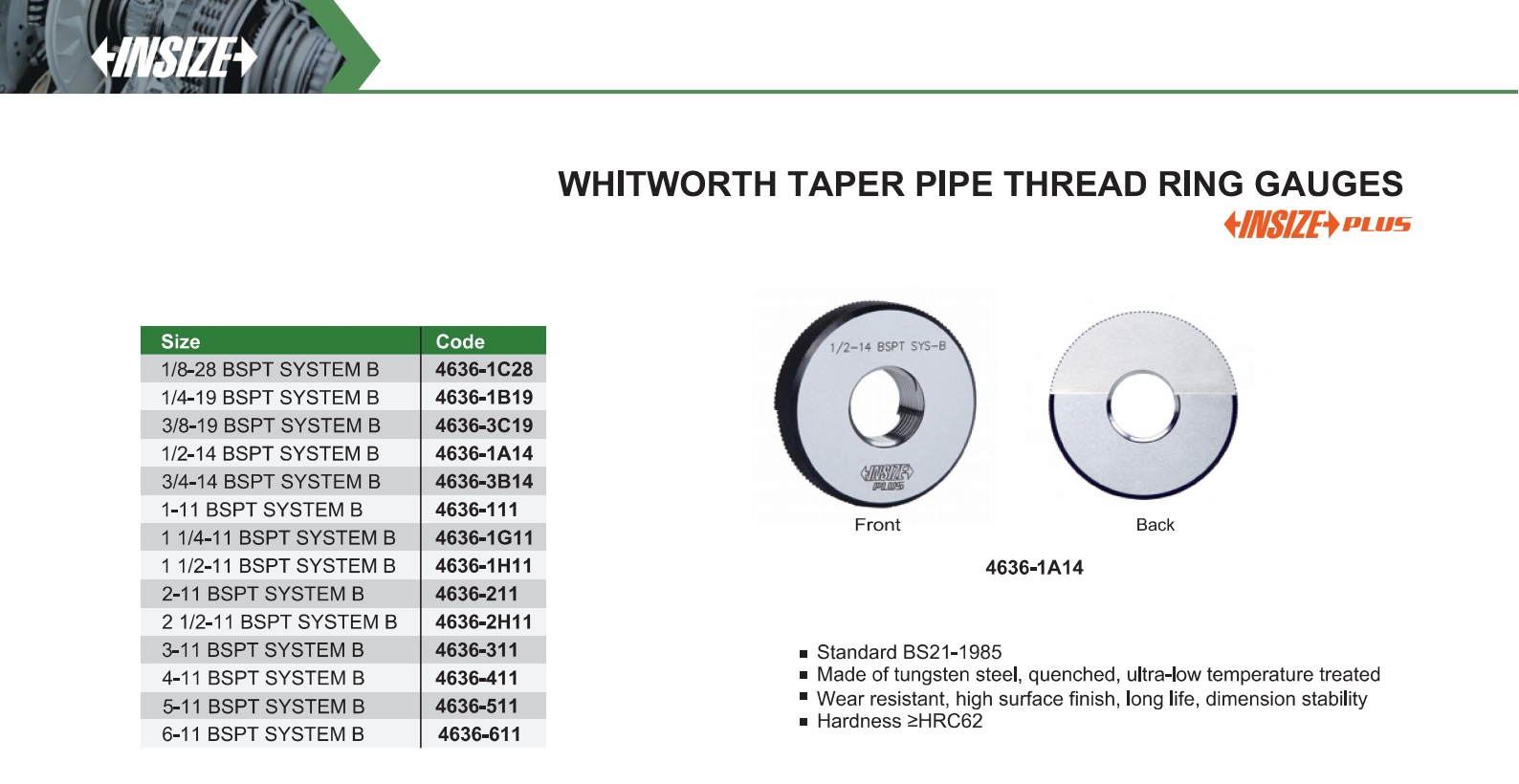

Whitworth Taper Pipe Thread Ring Gauges
Code: 4636
Standard BS21-1985
Made of tungsten steel, quenched, ultra-low temperature treated
Wear resistant, high surface finish, long life, dimension stability
Hardness ≥HRC62
| Code | Size |
|---|---|
| 4636-1C28 | 1/8-28 BSPT SYSTEM B |
| 4636-1B19 | 1/4-19 BSPT SYSTEM B |
| 4636-3C19 | 3/8-19 BSPT SYSTEM B |
| 4636-1A14 | 1/2-14 BSPT SYSTEM B |
| 4636-3B14 | 3/4-14 BSPT SYSTEM B |
| 4636-111 | 1-11 BSPT SYSTEM B |
| 4636-1G11 | 1 1/4-11 BSPT SYSTEM B |
| 4636-1H11 | 1 1/2-11 BSPT SYSTEM B |
| 4636-211 | 2-11 BSPT SYSTEM B |
| 4636-2H11 | 2 1/2-11 BSPT SYSTEM B |
| 4636-311 | 3-11 BSPT SYSTEM B |
| 4636-411 | 4-11 BSPT SYSTEM B |
| 4636-511 | 5-11 BSPT SYSTEM B |
| 4636-611 | 6-11 BSPT SYSTEM B |
