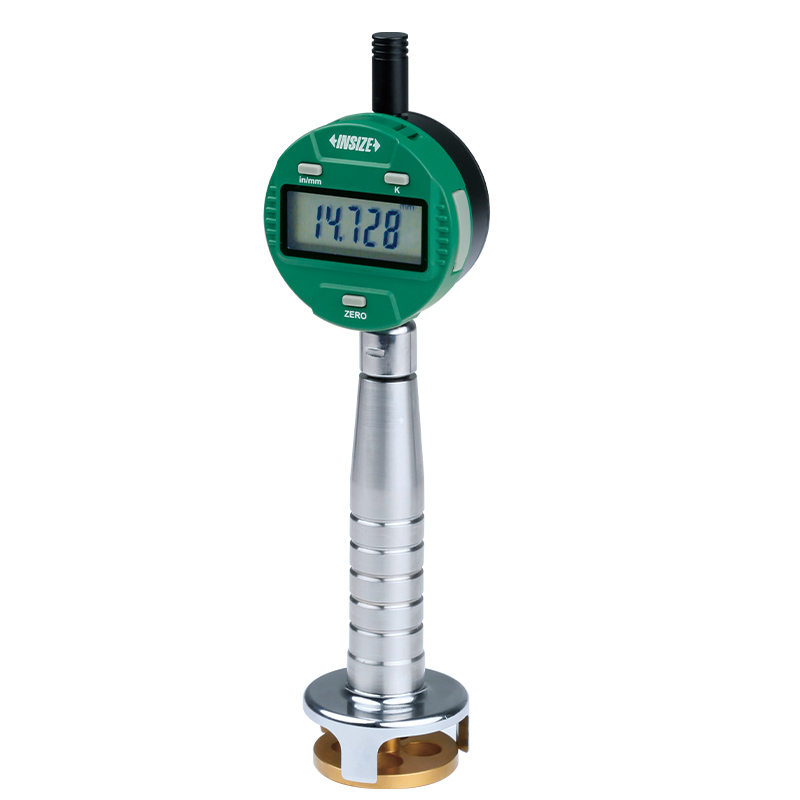

Digital Internal Chamfer Gauges
Code: 2937
Measure end diameter of chamfer or taper holes
Direct read (end diameter), no calculations
TiN coated, wear/rust-resistant
Optional accessory: wireless transmitter code 7315-51B (receiver is needed)
| Code | Range | Accuracy | Resolution | Angle α |
|---|---|---|---|---|
| 2937-101 | Ø1-Ø20mm | ±0.02mm | 0.01mm/0.0005" | 90° |
| 2937-102 | Ø20-Ø40mm | ±0.02mm | 0.01mm/0.0005" | 90° |
| 2937-201 | Ø1-Ø20mm | ±0.02mm | 0.01mm/0.0005" | 130° |
| 2937-202 | Ø20-Ø40mm | ±0.02mm | 0.01mm/0.0005" | 130° |
| 2937-301 | Ø1-Ø20mm | ±0.03mm | 0.01mm/0.0005" | 150° |
| 2937-302 | Ø20-Ø40mm | ±0.03mm | 0.01mm/0.0005" | 150° |

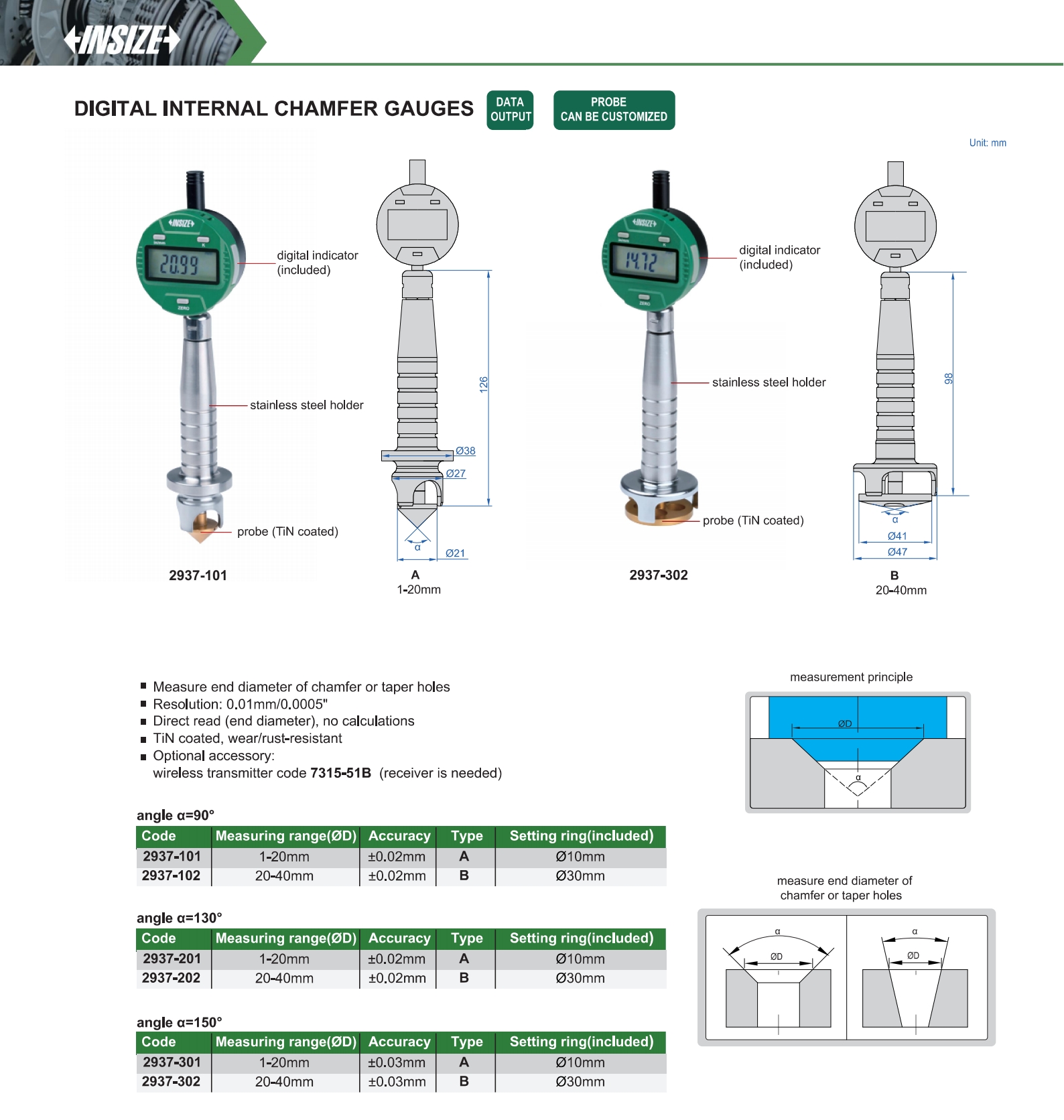

View the complete
