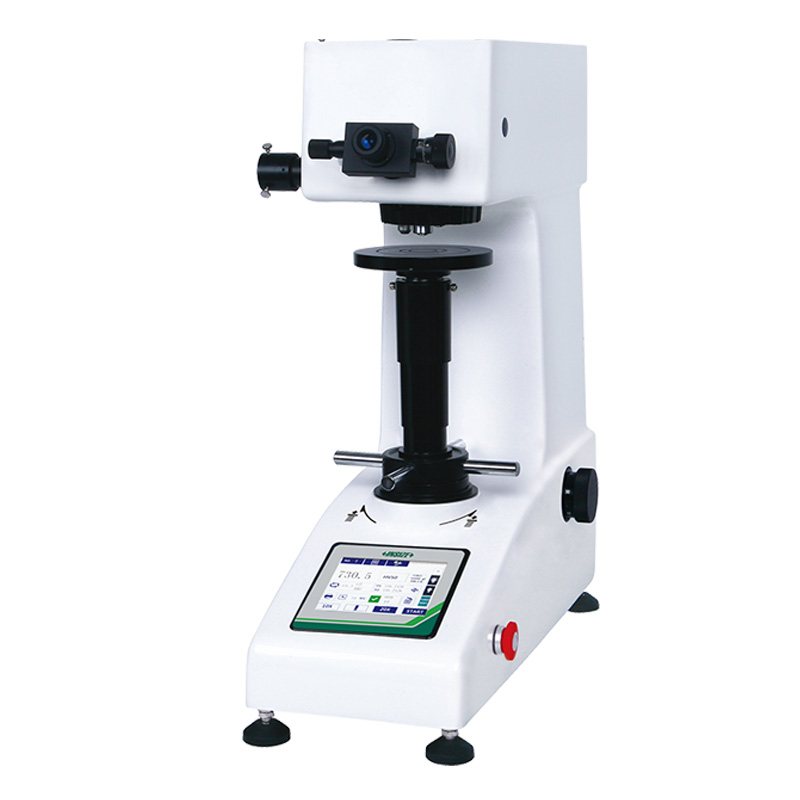

Digital Vickers Hardness Testers (Basic Type)
Code: HDT-VE
Touch screen color LCD display
Data storage and average value calculation
Automatic switch between the indenter and objective lens
According to ISO 6507
| Code | Load control | Max. workpiece height | Max. testing width | Hardness scale | Total magnification |
|---|---|---|---|---|---|
| HDT-VE03 | automatic (load/dwell/unload) | 175mm | 135mm | HV0.3~HV5 | 100X (for measurement or observation), 200X (for measurement) |
| HDT-VE14 | automatic (load/dwell/unload) | 175mm | 135mm | HV0.3~HV10 | 100X (for measurement or observation), 200X (for measurement) |
| HDT-VE35 | automatic (load/dwell/unload) | 175mm | 135mm | HV1~HV30 | 100X (for measurement or observation), 200X (for measurement) |
| HDT-VE56 | automatic (load/dwell/unload) | 175mm | 135mm | HV1~HV50 | 100X (for measurement or observation), 200X (for measurement) |
View the complete
product specifications
