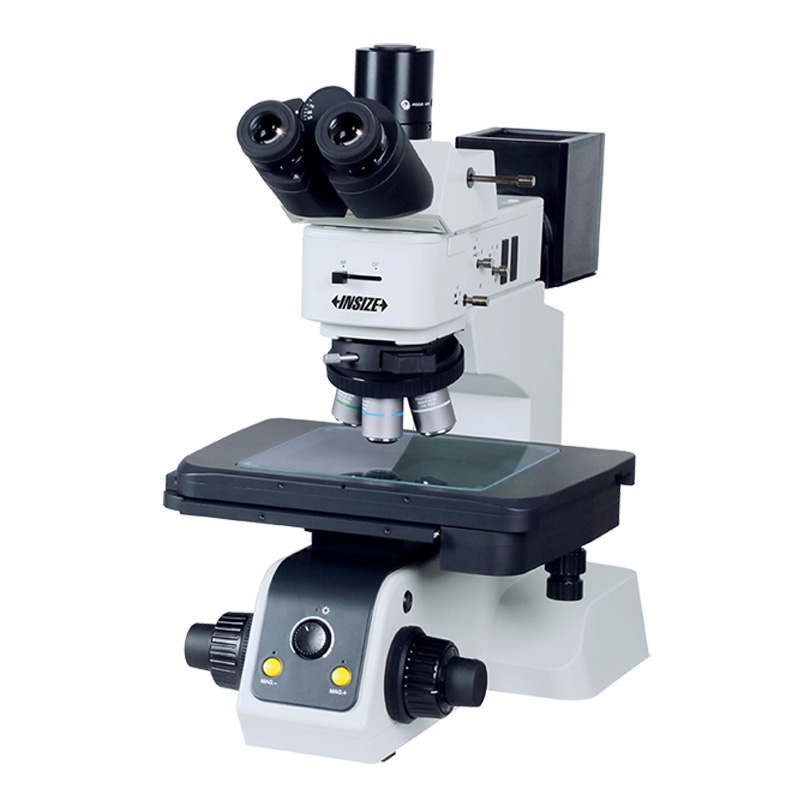

Metallurgical Microscopes (Advanced Type)
Code: 5108-M3000/M3000H
Infinite chromatic aberration correction optical system
Three way observation tube with infinite hinge
Translucent and reflective frame, front low-hand position coarse and fine coaxial focus adjustment mechanism, with adjustment elastic device to prevent sliding and random upper limit device
Bright and dark field five-hole converter with DIC slot
Adopt digital dimming, with light intensity reset and setting function
With polarizer insert plate and 360° rotating analyzer insert slot
| Code | Stage size | Magnification | Eyepiece | Objective |
|---|---|---|---|---|
| 5108-M3000 | size: 310×240mm, travel: 150×100mm | 50X~500X | high eye point large field SWH10X-H | bright & dark field |
| 5108-M3000H | size: 310×240mm, travel: 150×100mm | 50X~500X | high eye point large field SWH10X-H | bright & dark field |

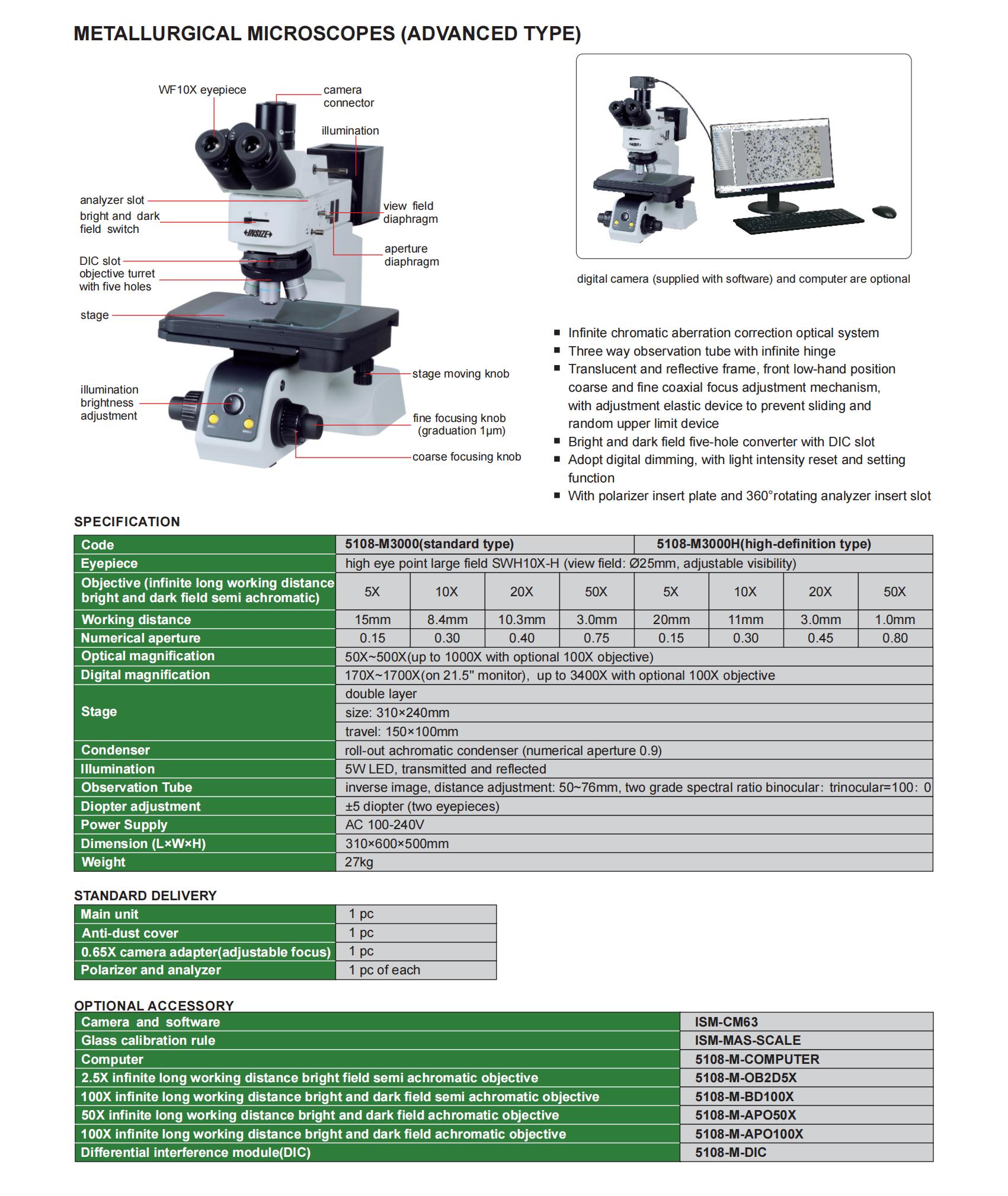

View the complete
