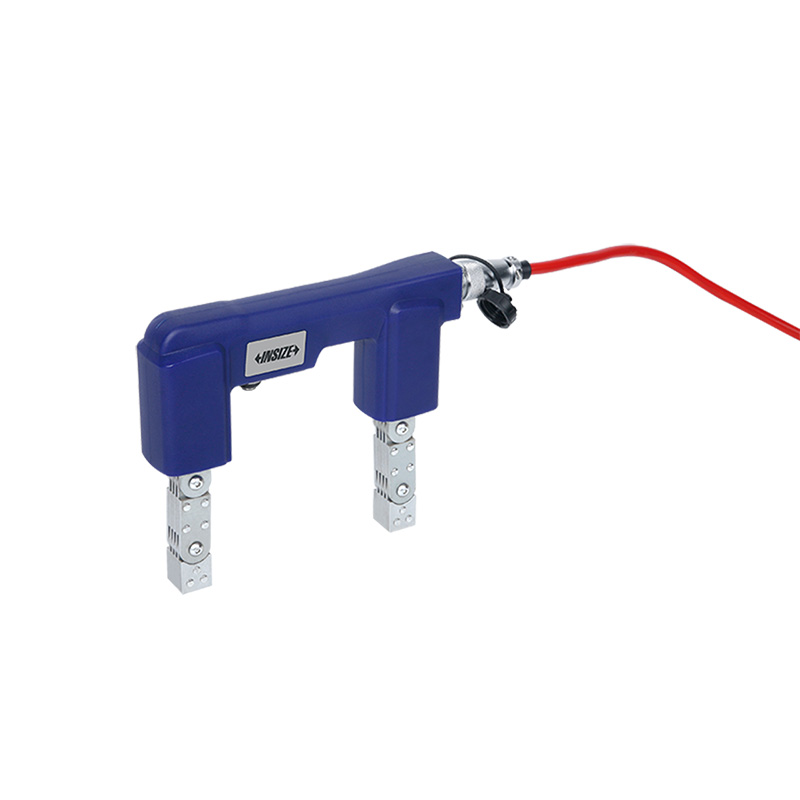

Portable Ac Magnetic Powder Flaw Detectors (Advanced Type)
Code: MPI-M
Conformity to standards JB/T7411-2012 ASTM E709-08 ASTM E1444, EN10228-1:1999 ISO 9934
Light weight ergonomic design reduces operator muscle fatigue
Magnetic pole feet of the movable joints can make good contact with any shape of parts

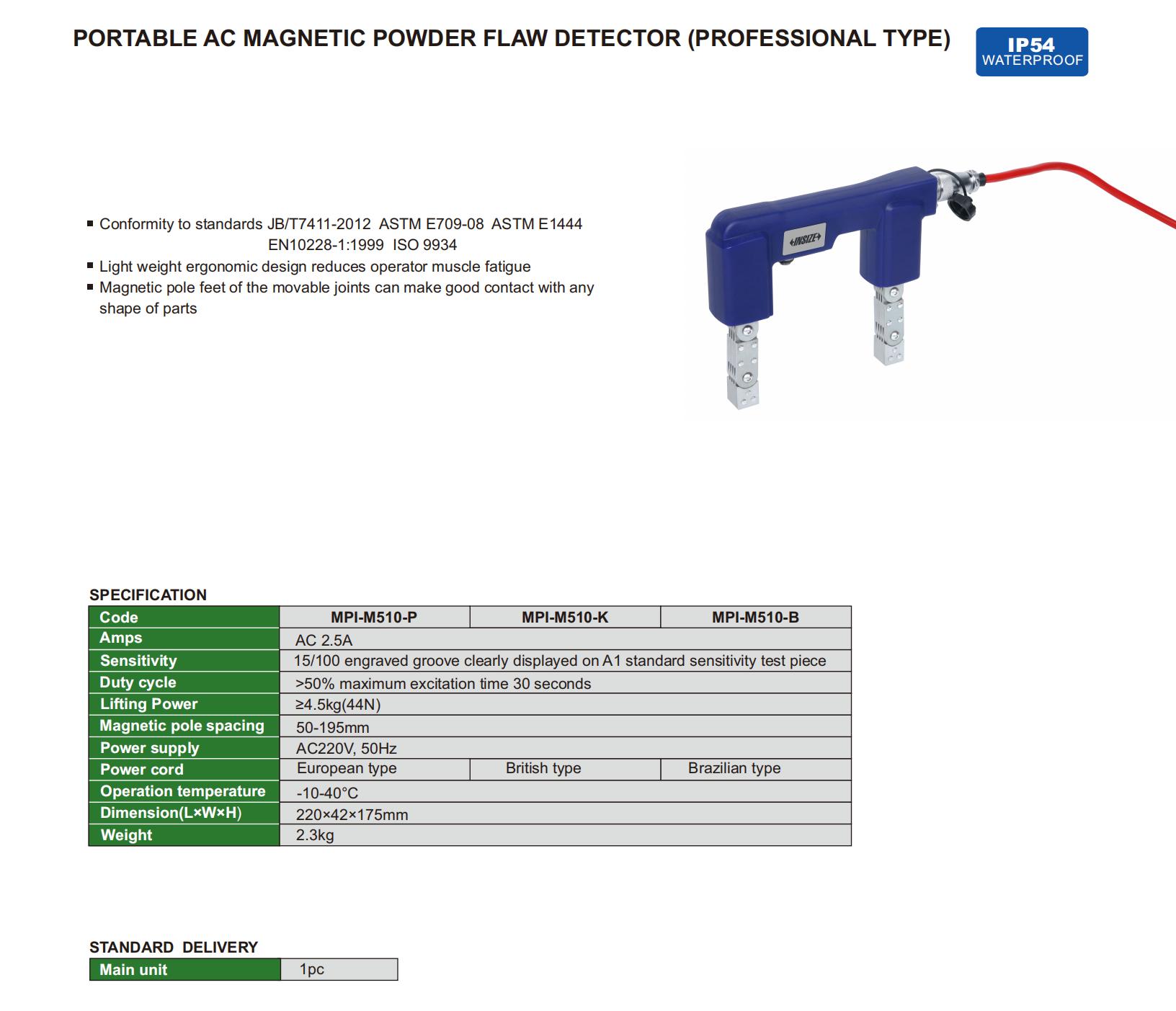

| Code | Sensitivity | Lifting power | Magnetic pole spacing |
|---|---|---|---|
| MPI-M510-P | 15/100 engraved groove clearly displayed on A1 standard sensitivity test piece | ≥4.5kg (44N) | 50-195mm |
| MPI-M510-K | 15/100 engraved groove clearly displayed on A1 standard sensitivity test piece | ≥4.5kg (44N) | 50-195mm |
| MPI-M510-B | 15/100 engraved groove clearly displayed on A1 standard sensitivity test piece | ≥4.5kg (44N) | 50-195mm |
View the complete
product specifications
