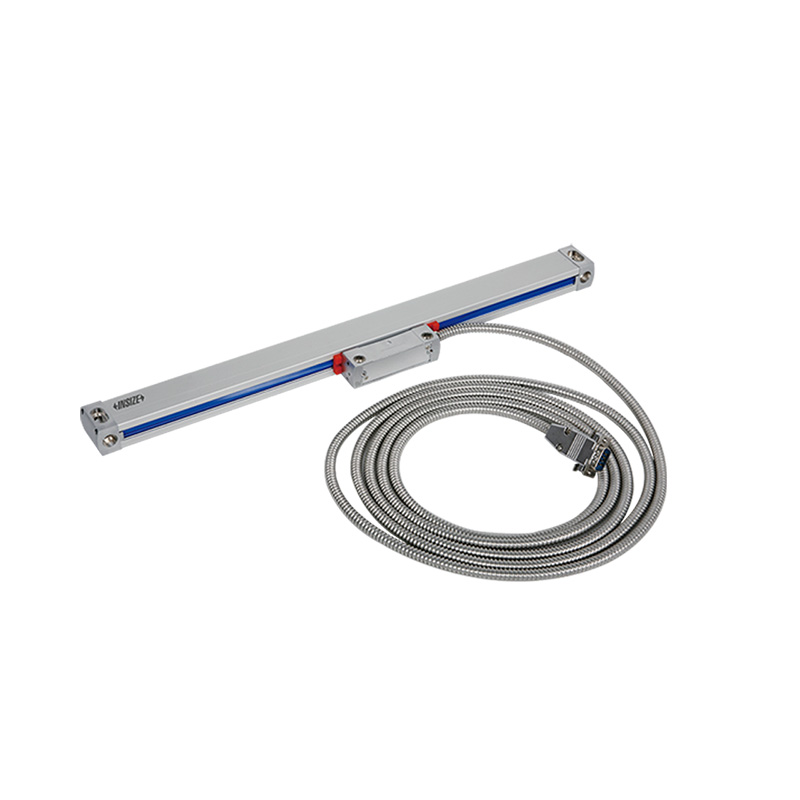

Linear Scales
Code: ISL-F
Connected to digital display box or PLC
| Code | Type | Resolution | Output signal |
|---|---|---|---|
| Series ISL-F (thin type) | Optical grating | 0.5µm/1µm/5µm | TTL/HTL/RS422 |
| Series ISL-G (thick type) | Optical grating | 0.5µm/1µm/5µm | TTL/HTL/RS422 |

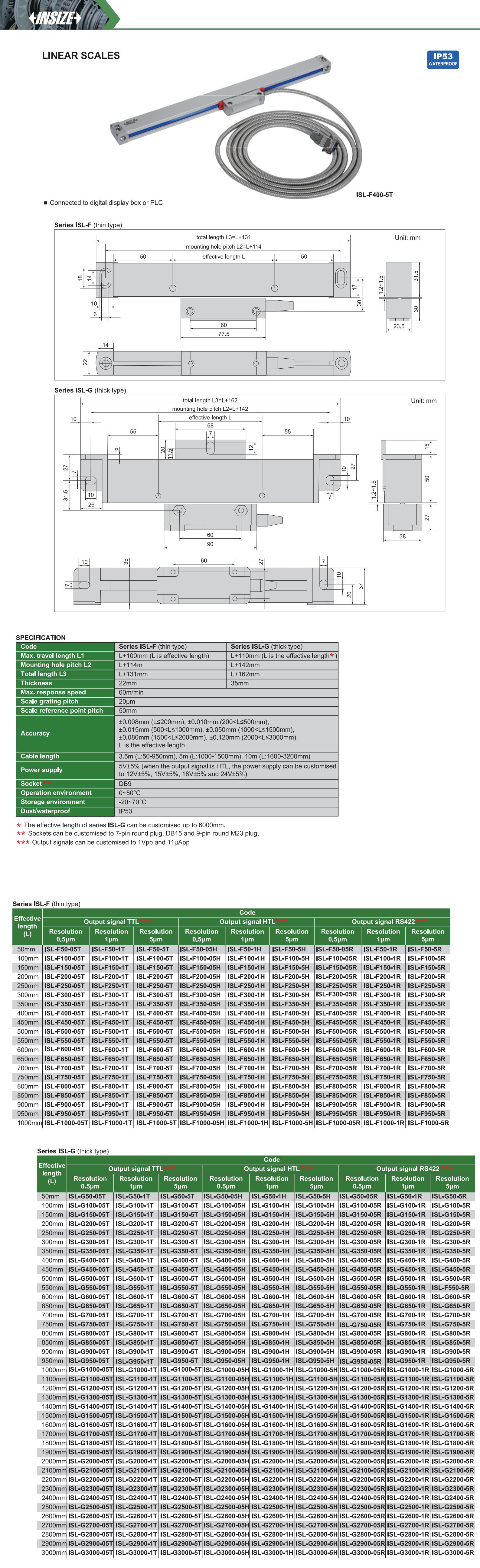

View the complete
product specifications
