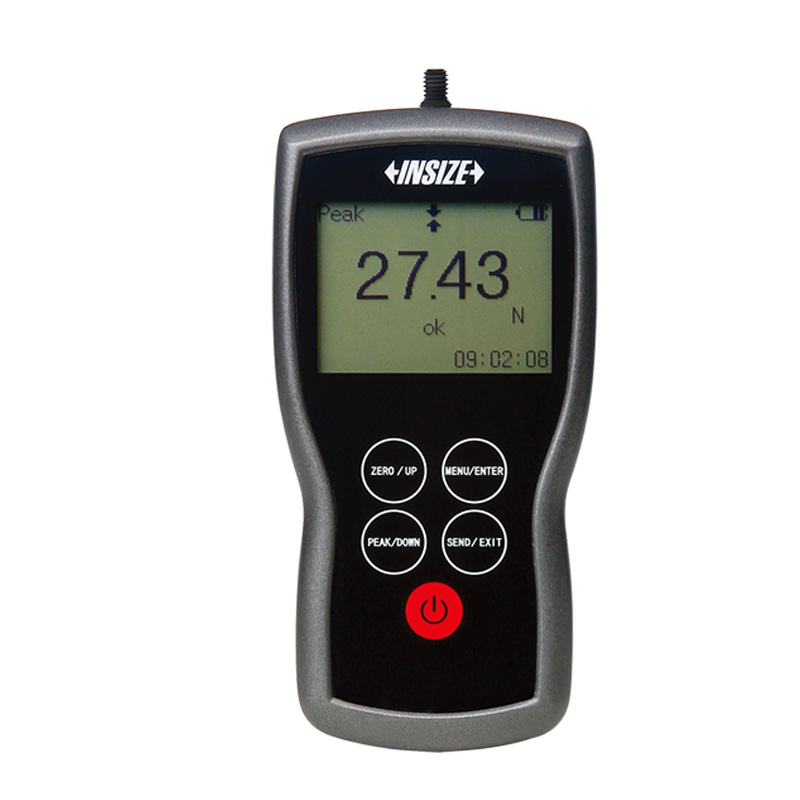

Digital Force Gages (Standard Type)
Code: ISF-DF Series
Type A and B can be used for tension and pressure tests, type C is only used for pressure tests
Peak (max.) and tracking mode
Tolerance testing
1000 memories
Automatic power off
Metal case, touch buttons
LCD display with backlight
| Code | Type | Load capacity |
|---|---|---|
| ISF-DF5A | digital | 5N |
| ISF-DF10A | digital | 10N |
| ISF-DF20A | digital | 20N |
| ISF-DF50A | digital | 50N |
| ISF-DF100A | digital | 100N |
| ISF-DF200A | digital | 200N |
| ISF-DF500A | digital | 500N |
| ISF-DF1KA | digital | 1000N |
| ISF-DF1KB | digital | 1000N |
| ISF-DF2KA | digital | 2000N |
| ISF-DF5KA | digital | 5000N |
| ISF-DF10KA | digital | 10000N |
| ISF-DF20KA | digital | 20000N |
| ISF-DF10KC | digital | 10KN |
| ISF-DF20KC | digital | 20KN |
| ISF-DF50KC | digital | 50KN |
| ISF-DF100KC | digital | 100KN |
| ISF-DF200KC | digital | 200KN |

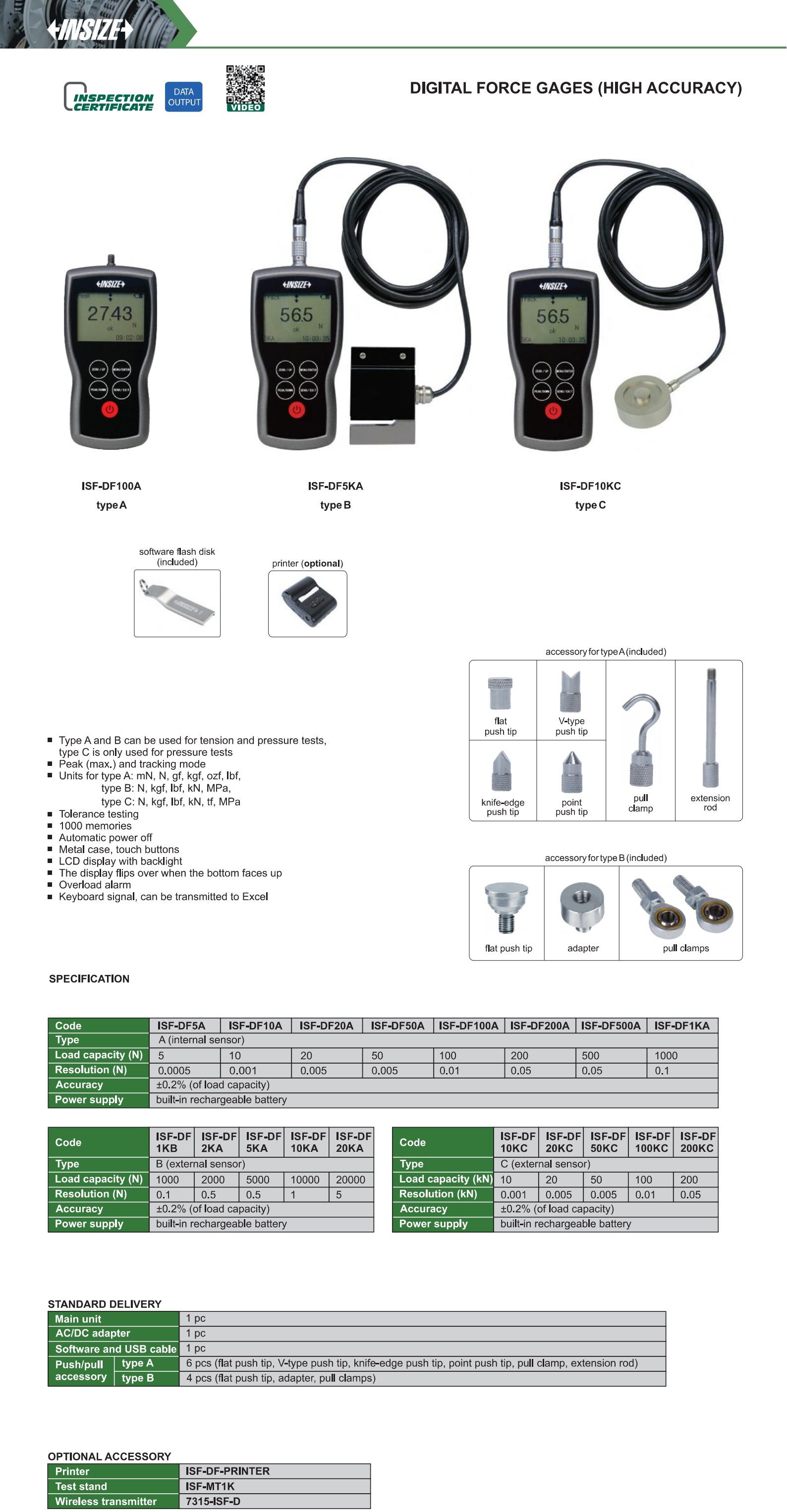

View the complete
