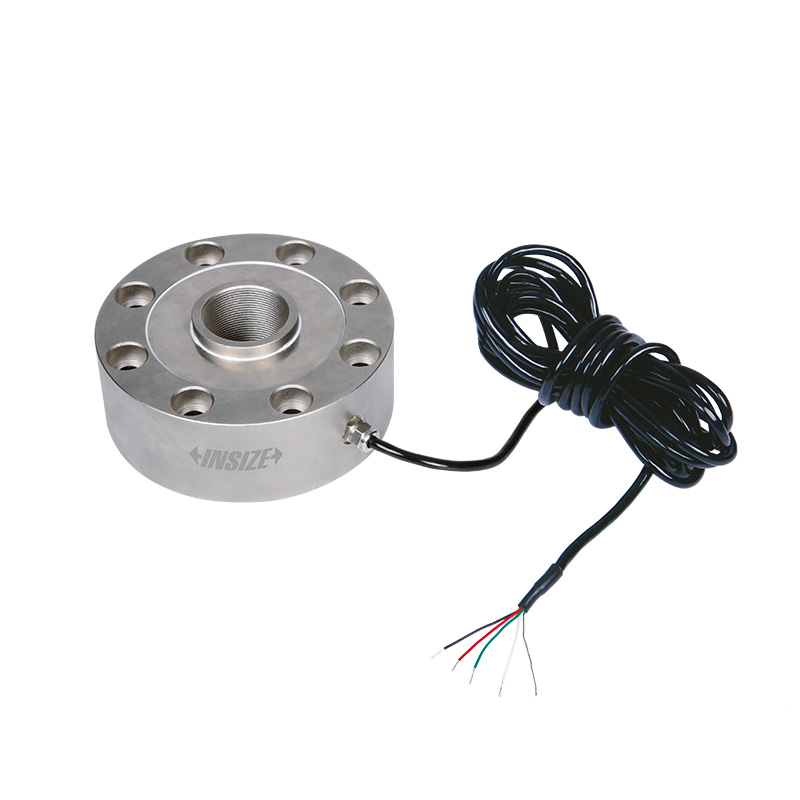

Spoke Type Force Sensors
Code: 8652
Characteristic: low height, good linearity, easy installation, high resistance to partial load and lateral force
Application fields: universal material testing machines, hopper scales, vehicle scales, rail scales, packaging scales, belt scales and other tension and pressure testing instruments, as well as in the field of automation and test equipments
| Code | Type | Range |
|---|---|---|
| 8652-1K | sensor | 1kN/100kg |
| 8652-2K | sensor | 2kN/200kg |
| 8652-3K | sensor | 3kN/300kg |
| 8652-5K | sensor | 5kN/500kg |
| 8652-1T | sensor | 10kN/1T |
| 8652-2T | sensor | 20kN/2T |
| 8652-3T | sensor | 30kN/3T |
| 8652-5T | sensor | 50kN/5T |
| 8652-10T | sensor | 100kN/10T |
| 8652-20T | sensor | 200kN/20T |
| 8652-30T | sensor | 300kN/30T |
| 8652-50T | sensor | 500kN/50T |
| 8652-80T | sensor | 800kN/80T |
| 8652-100T | sensor | 1000kN/100T |
| 8652-200T | sensor | 2000kN/200T |
| 8652-300T | sensor | 3000kN/300T |
| 8652-500T | sensor | 5000kN/500T |
| 8652-800T | sensor | 8000kN/800T |
| 8652-1000T | sensor | 10000kN/1000T |

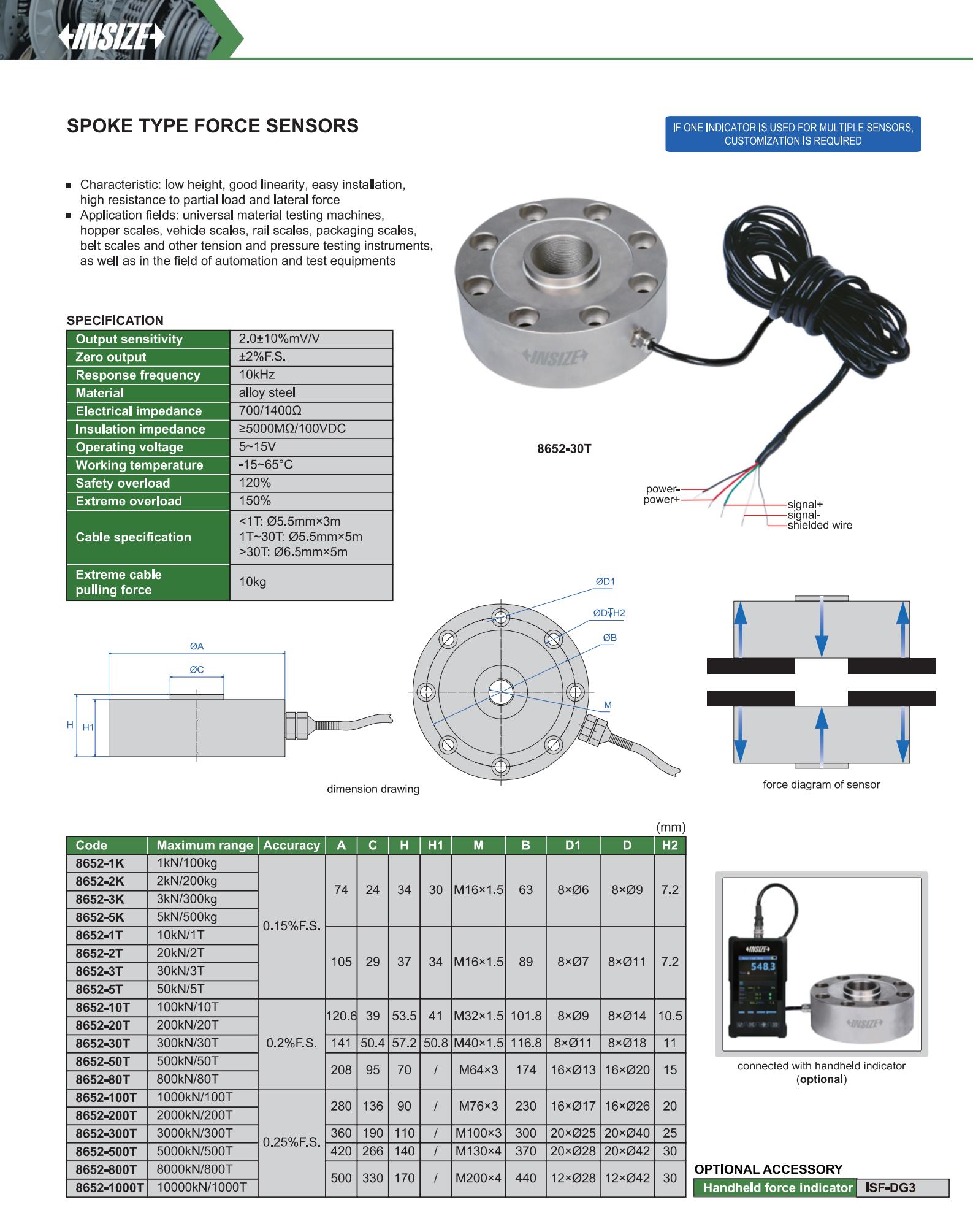

View the complete
product specifications
