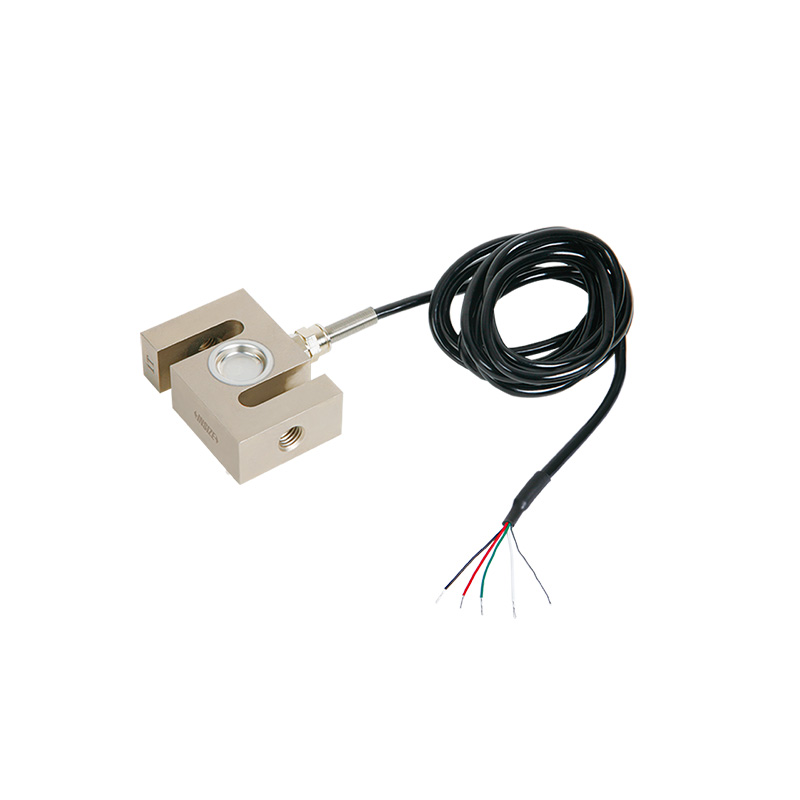

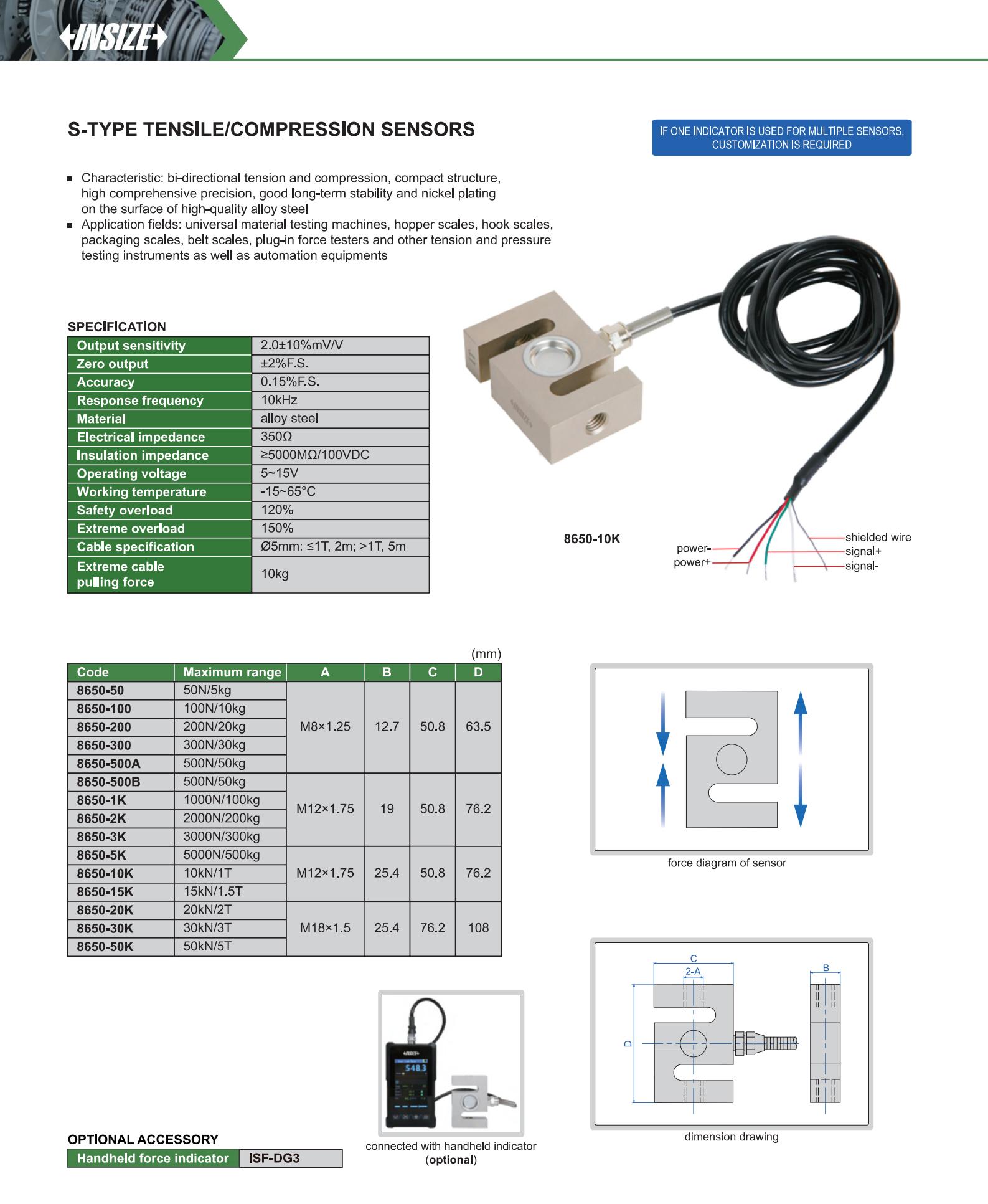

S-Type Tensile/Compression Sensors
Code: 8650
Characteristic: bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel
Application fields: universal material testing machines, hopper scales, hook scales, packaging scales, belt scales, plug-in force testers and other tension and pressure testing instruments as well as automation equipments
| Code | Type | Range |
|---|---|---|
| 8650-50 | sensor | 50N/5kg |
| 8650-100 | sensor | 100N/10kg |
| 8650-200 | sensor | 200N/20kg |
| 8650-300 | sensor | 300N/30kg |
| 8650-500A | sensor | 500N/50kg |
| 8650-500B | sensor | 500N/50kg |
| 8650-1K | sensor | 1000N/100kg |
| 8650-2K | sensor | 2000N/200kg |
| 8650-3K | sensor | 3000N/300kg |
| 8650-5K | sensor | 5000N/500kg |
| 8650-10K | sensor | 10kN/1T |
| 8650-15K | sensor | 15kN/1.5T |
| 8650-20K | sensor | 20kN/2T |
| 8650-30K | sensor | 30kN/3T |
| 8650-50K | sensor | 50kN/5T |
View the complete
product specifications
