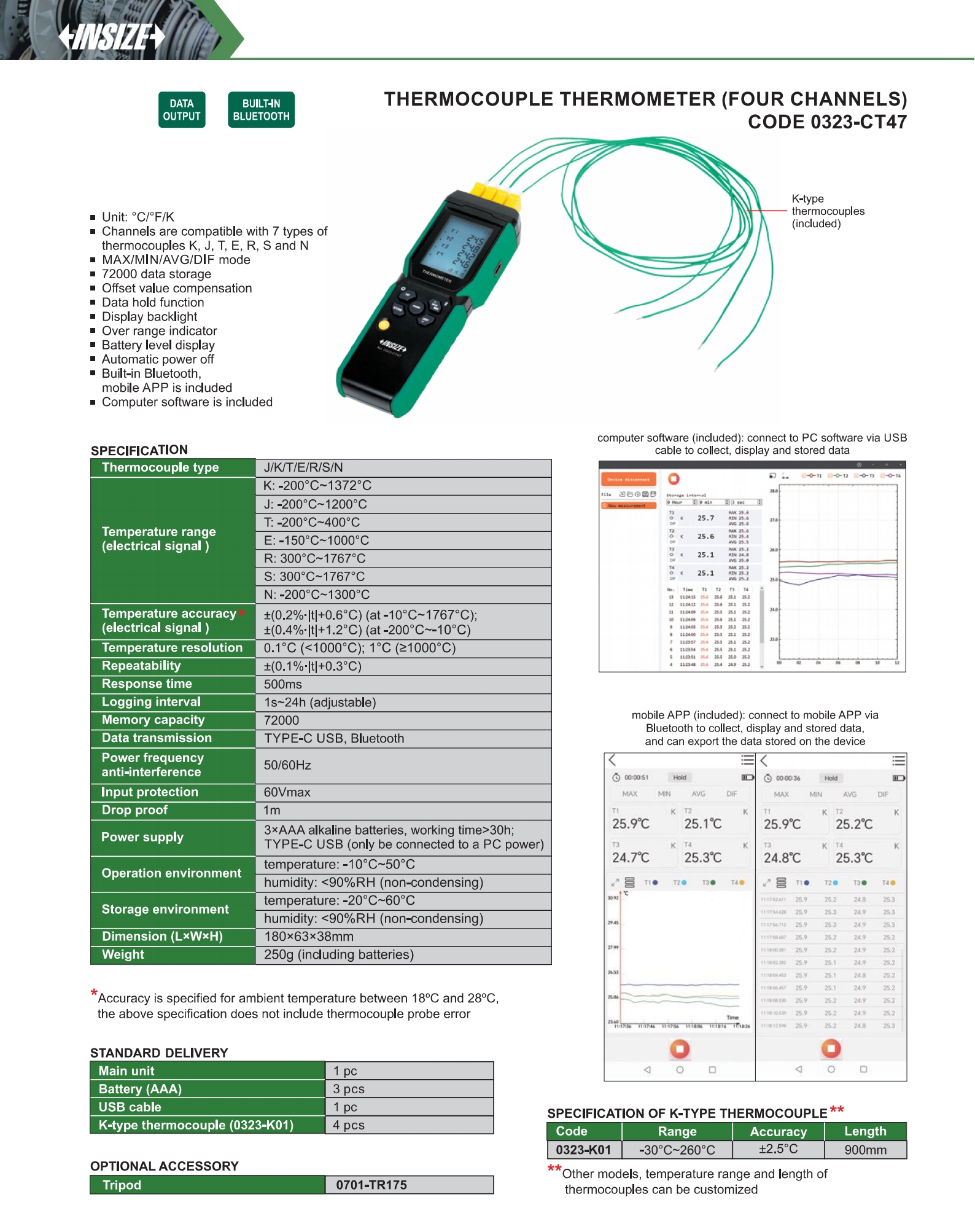

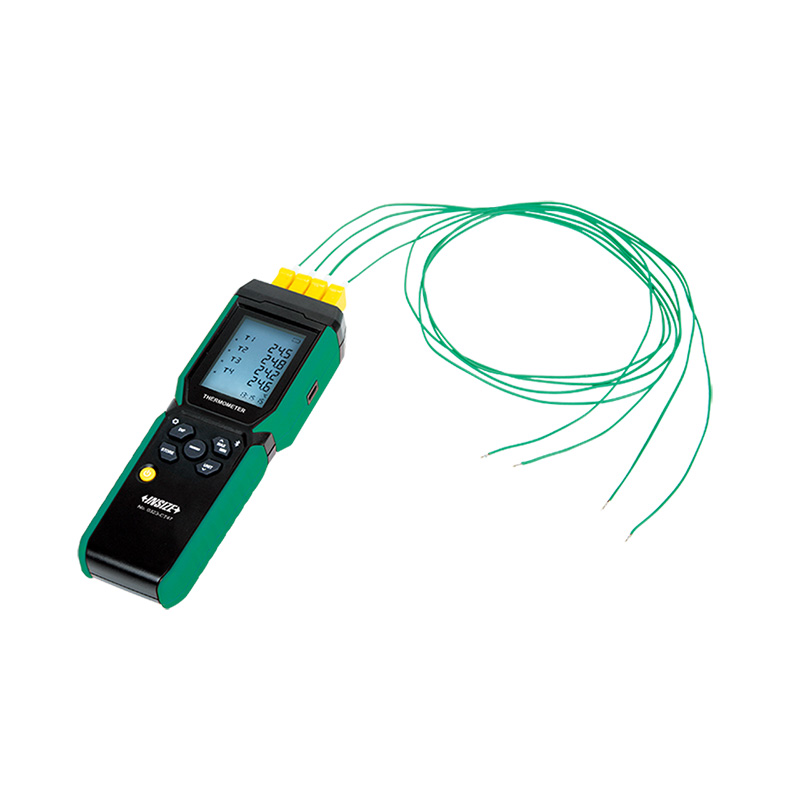

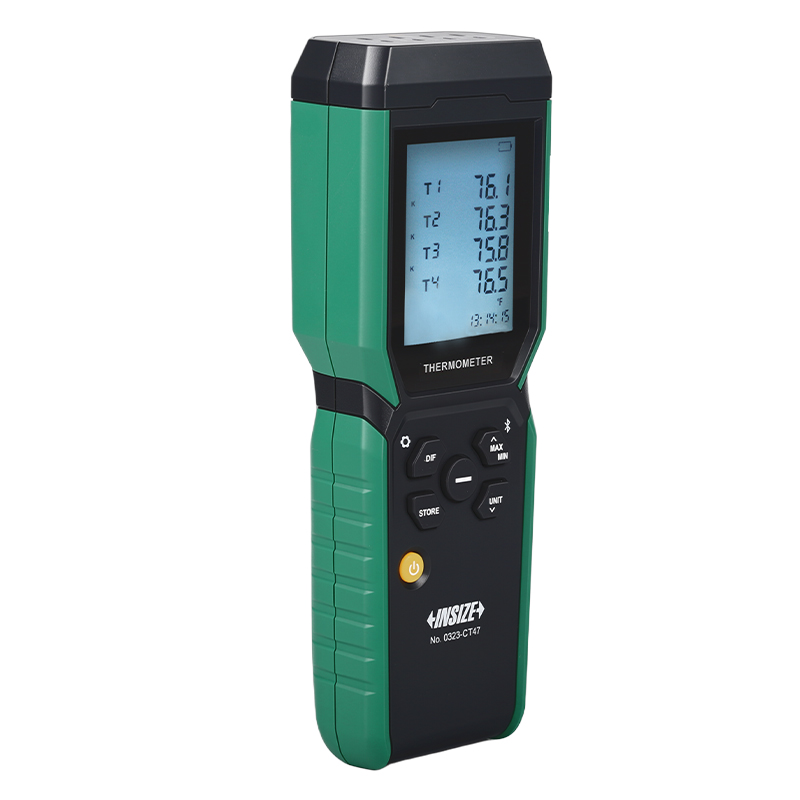

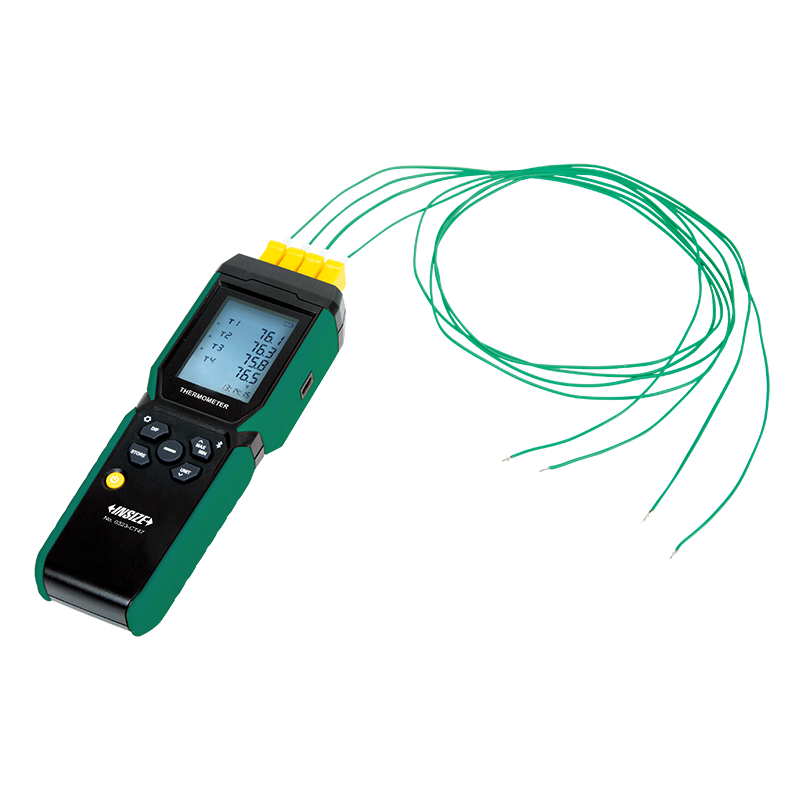

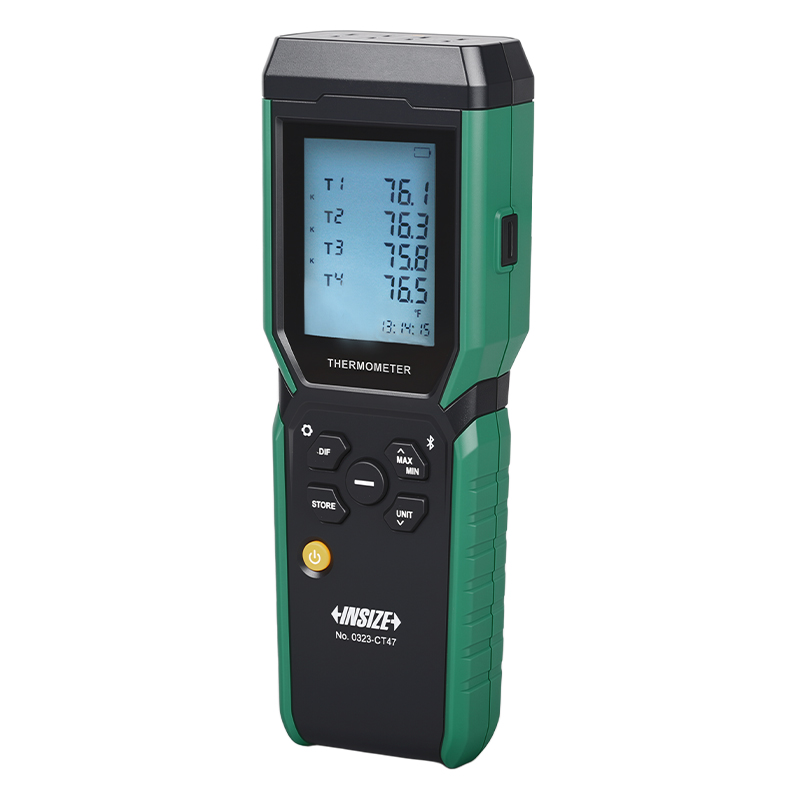

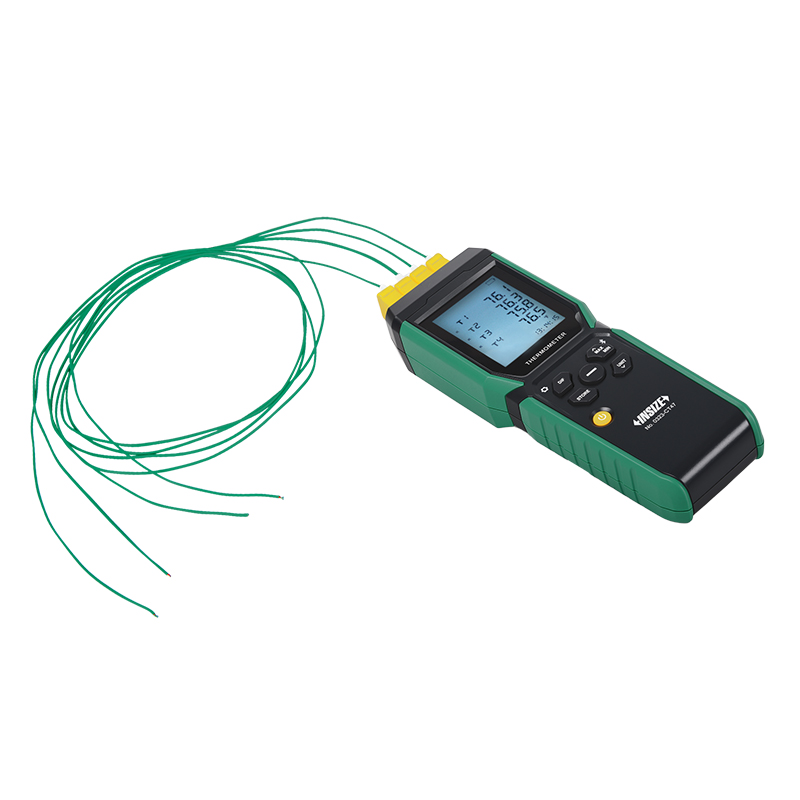

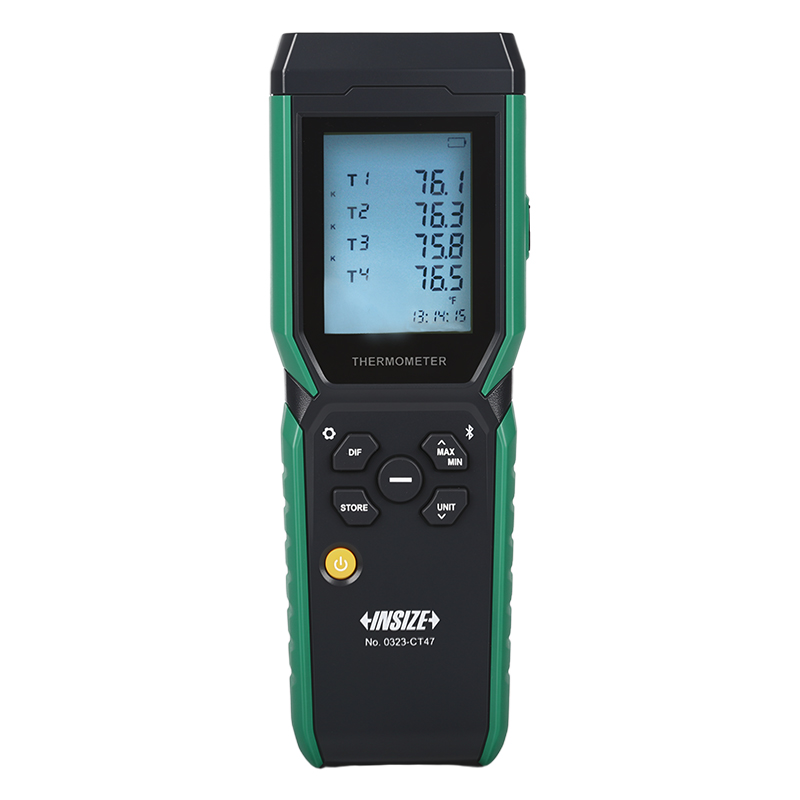

Thermocouple Thermometer (Four Channels)
Code: 0323-CT47
Unit: °C/°F/K
Channels are compatible with 7 types of thermocouples K, J, T, E, R, S and N
MAX/MIN/AVG/DIF mode
72000 data storage
Offset value compensation
Data hold function
Over range indicator
Battery level display
| Code | Type | Sensor type | Accuracy | Channel number | Storage | Temperature range |
|---|---|---|---|---|---|---|
| 0323-CT47 | K | thermocouple | ±(0.2%∙|t|+0.6°C) (at -10°C~1767°C); ±(0.4%∙|t|+1.2°C) (at -200°C~-10°C) | 4 | yes | -200°C~1372°C |
| 0323-CT47 | J | thermocouple | ±(0.2%∙|t|+0.6°C) (at -10°C~1767°C); ±(0.4%∙|t|+1.2°C) (at -200°C~-10°C) | 4 | yes | -210°C~1200°C |
| 0323-CT47 | T | thermocouple | ±(0.2%∙|t|+0.6°C) (at -10°C~1767°C); ±(0.4%∙|t|+1.2°C) (at -200°C~-10°C) | 4 | yes | -250°C~400°C |
| 0323-CT47 | E | thermocouple | ±(0.2%∙|t|+0.6°C) (at -10°C~1767°C); ±(0.4%∙|t|+1.2°C) (at -200°C~-10°C) | 4 | yes | -150°C~1000°C |
| 0323-CT47 | R | thermocouple | ±(0.2%∙|t|+0.6°C) (at -10°C~1767°C); ±(0.4%∙|t|+1.2°C) (at -200°C~-10°C) | 4 | yes | 0°C~1767°C |
| 0323-CT47 | S | thermocouple | ±(0.2%∙|t|+0.6°C) (at -10°C~1767°C); ±(0.4%∙|t|+1.2°C) (at -200°C~-10°C) | 4 | yes | 0°C~1767°C |
| 0323-CT47 | N | thermocouple | ±(0.2%∙|t|+0.6°C) (at -10°C~1767°C); ±(0.4%∙|t|+1.2°C) (at -200°C~-10°C) | 4 | yes | -200°C~1300°C |
