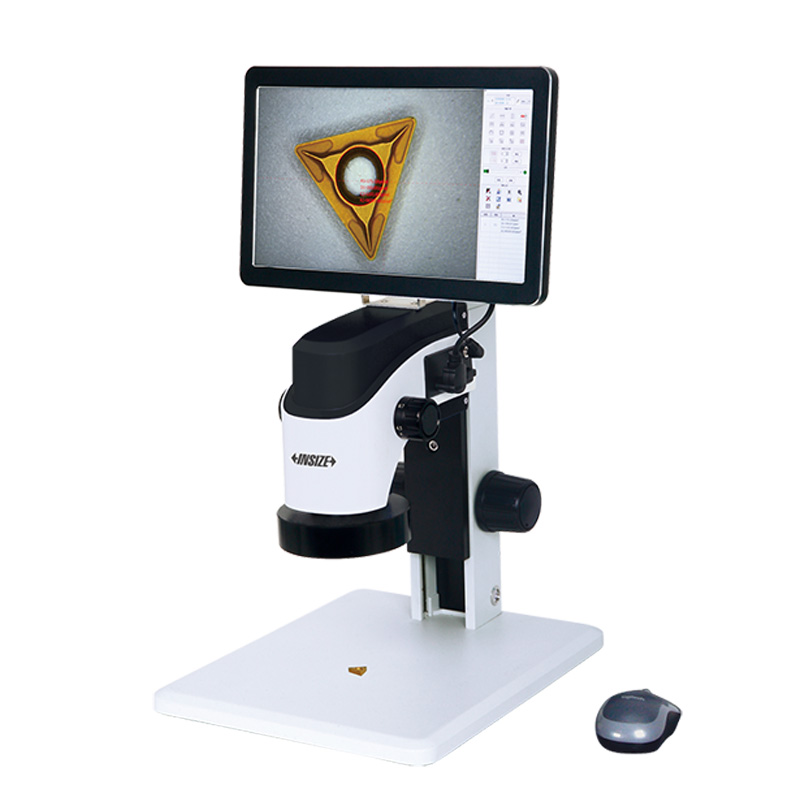

Digital Measuring Microscopes (Standard Type)
Code: 5307
Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed
Two methods of LED brightness adjustment, knob adjustment and software adjustment
Built-in software without computer, operated by mouse
Take pictures, save to USB flash disk
Measuring results can be sent to Excel
| Code | Type | Magnification | View field | Pixel |
|---|---|---|---|---|
| 5307-ID100A | digital measuring microscopes | 12~77X | 3.2×1.8~20.9×11.7mm | 2M |
| 5307-ID120A | digital measuring microscopes | 12~77X | 3.2×1.8~20.9×11.7mm | 2M |
| 5307-ID200A | digital measuring microscopes | 6~38X | 6.4×3.6~41.8×23.4mm | 2M |
