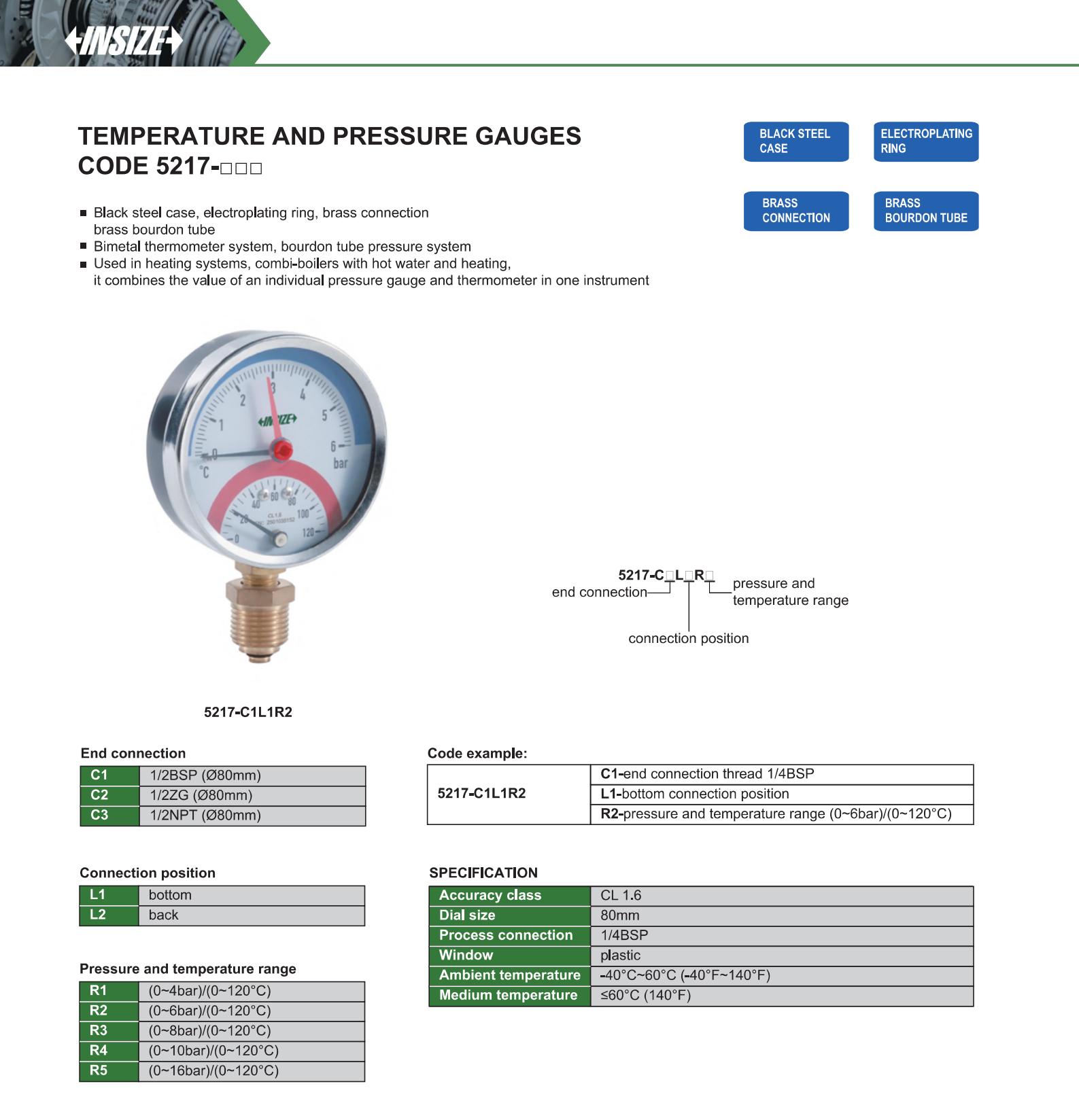

| Code | Connection | Dial size | Connection position | Window |
|---|---|---|---|---|
| 5217 | 1/4BSP | Ø80mm | bottom, back | plastic |

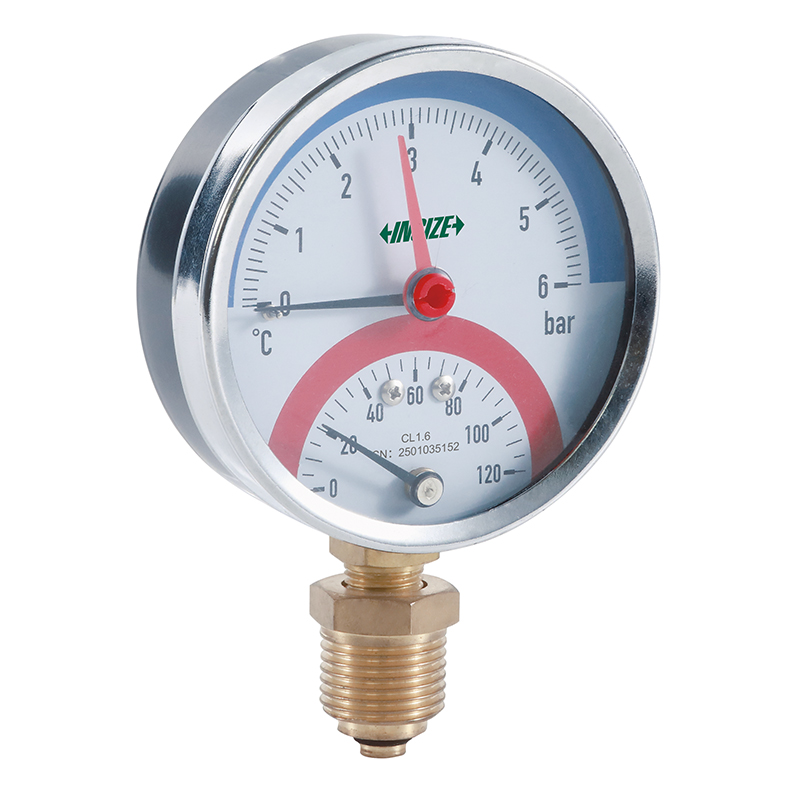

Black steel case, electroplating ring, brass connection, brass bourdon tube
Bimetal thermometer system, bourdon tube pressure system
Used in heating systems, combi-boilers with hot water and heating, it combines the value of an individual pressure gauge and thermometer in one instrument
| Code | Connection | Dial size | Connection position | Window |
|---|---|---|---|---|
| 5217 | 1/4BSP | Ø80mm | bottom, back | plastic |
