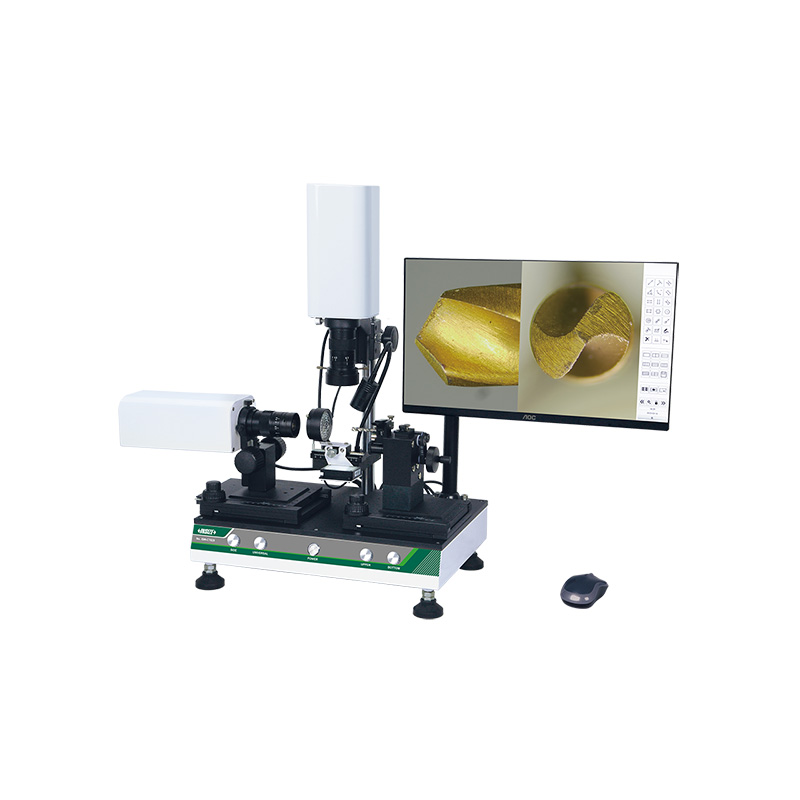

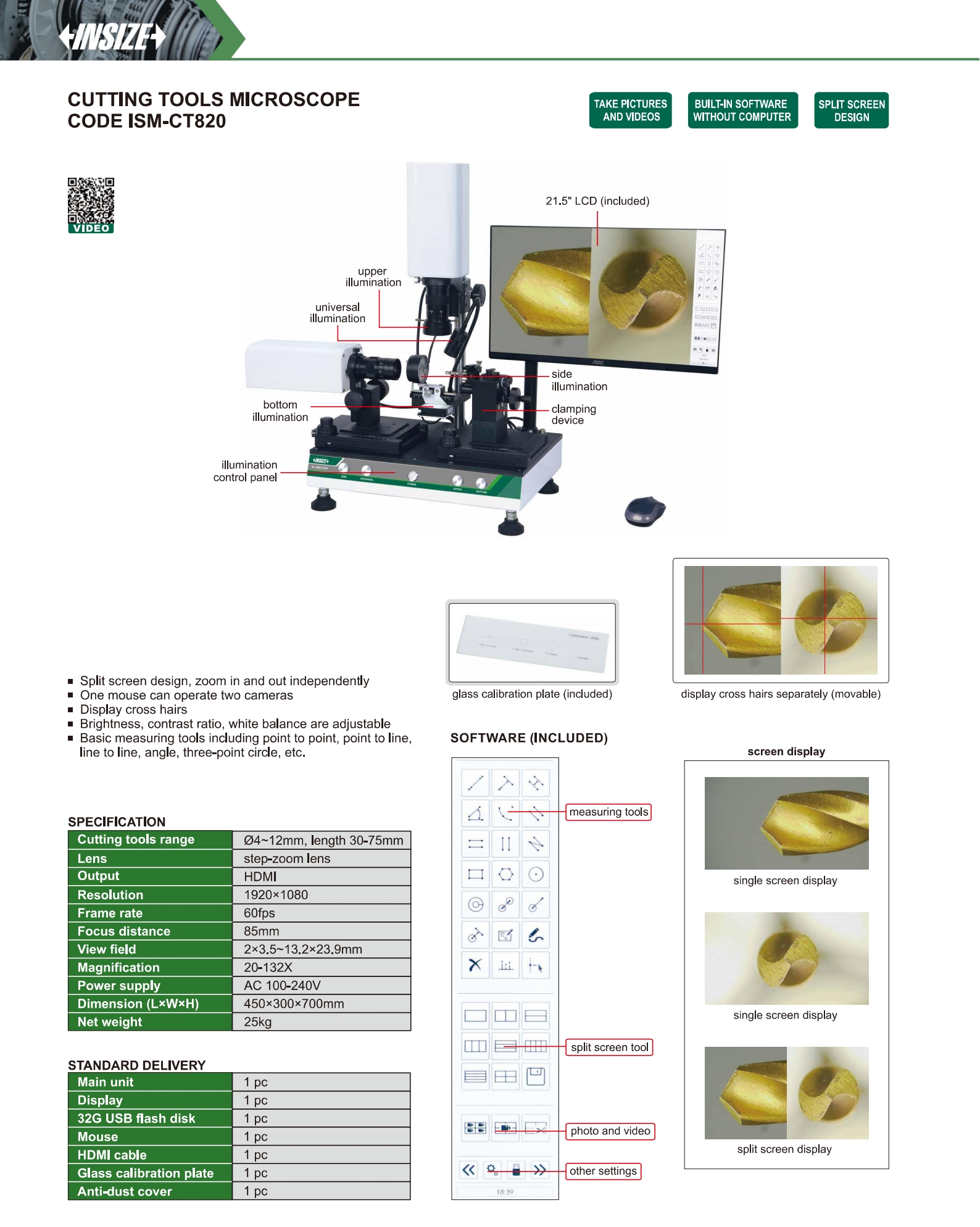

Cutting Tools Microscope
Code: ISM-CT820
Split screen design, zoom in and out independently
One mouse can operate two cameras
Display cross hairs
Brightness, contrast ratio, white balance are adjustable
Basic measuring tools including point to point, point to line, line to line, angle, three-point circle, etc.
| Code | Range | Resolution | Magnification | View field |
|---|---|---|---|---|
| ISM-CT820 | Ø4~12mm, length 30-75mm | 1920×1080 | 20-132X | 2×3.5~13.2×23.9mm |
View the complete
product specifications
