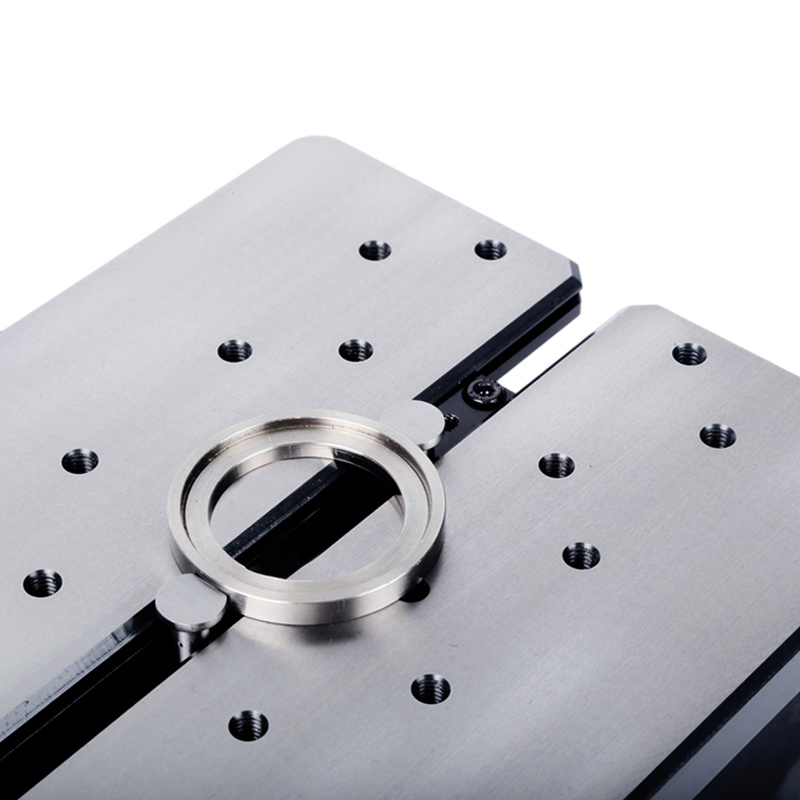

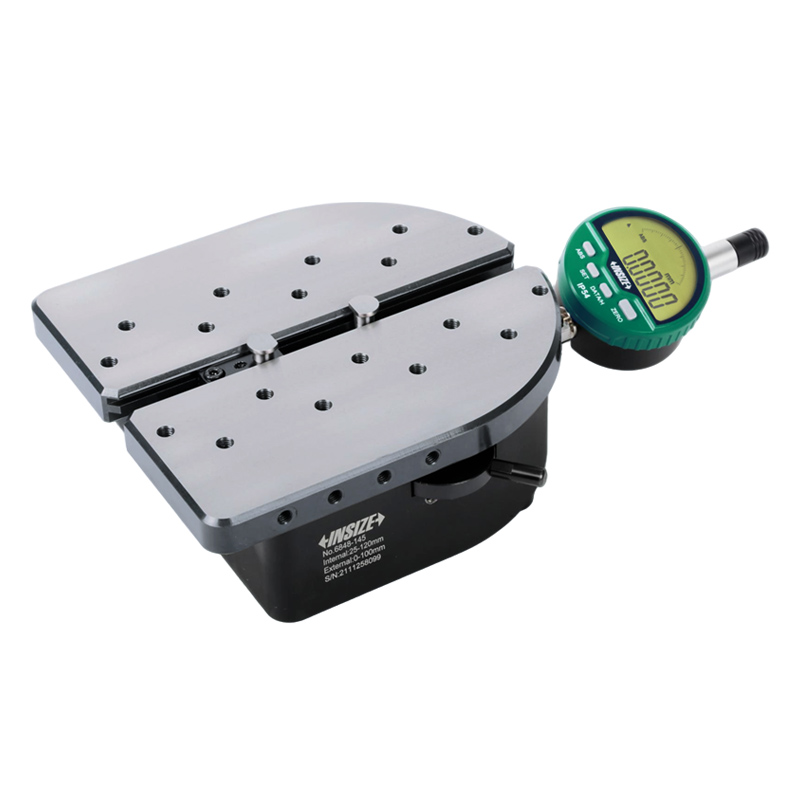

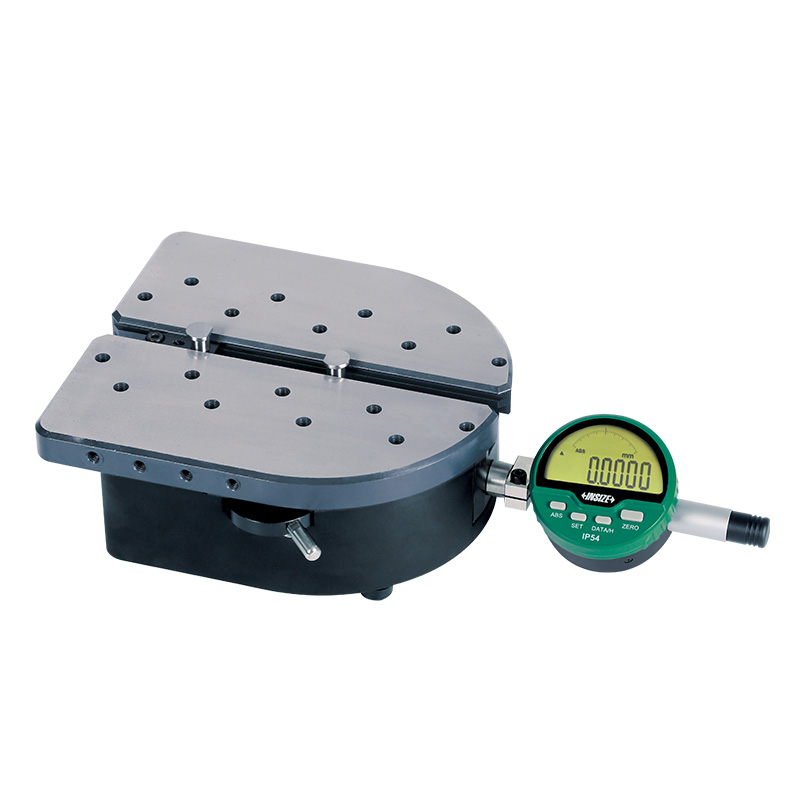

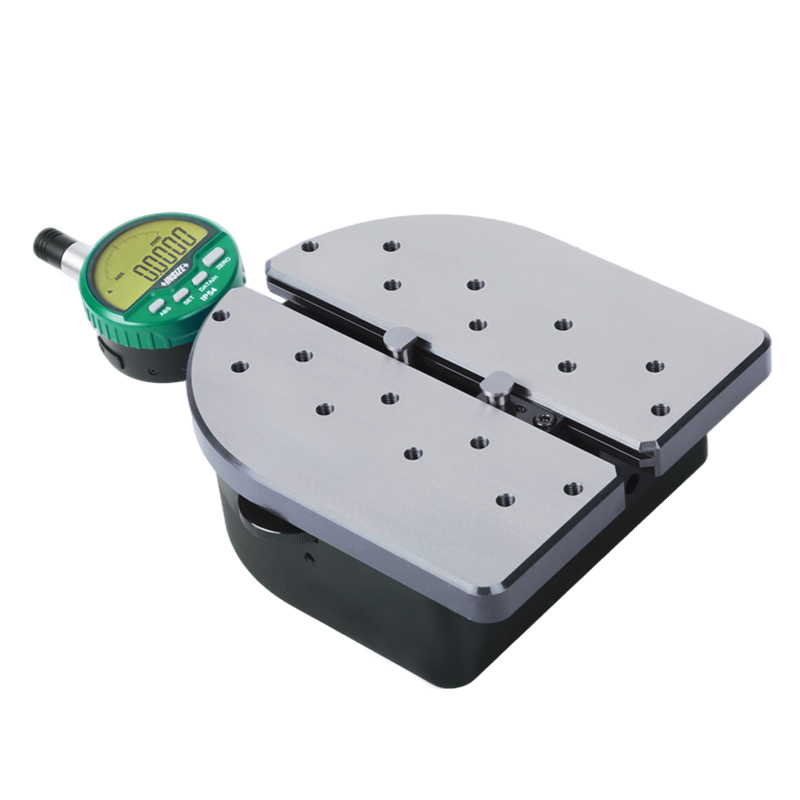

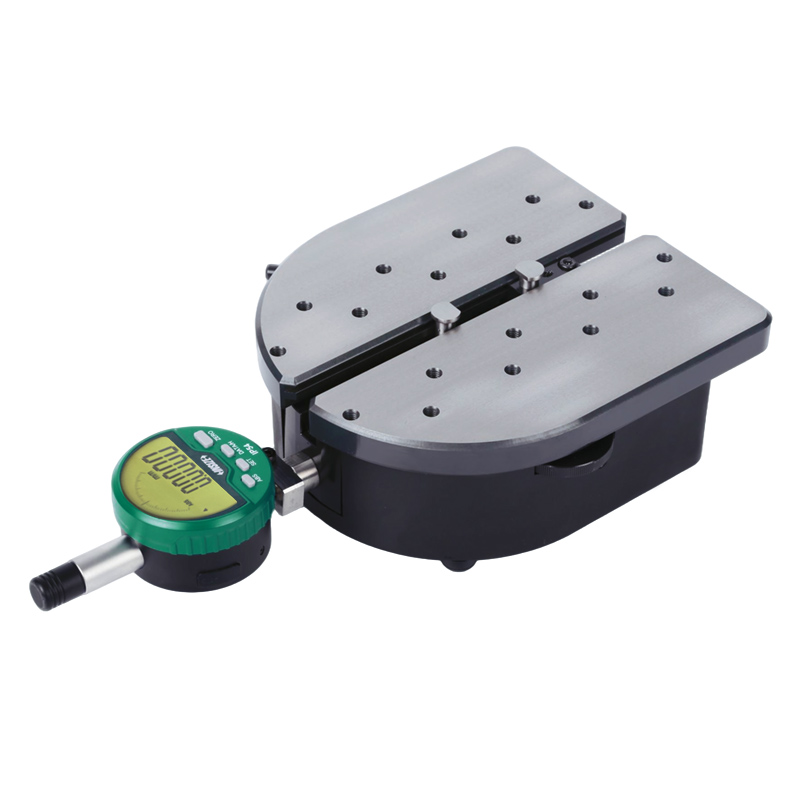

Universal Comparison Measuring Bench
Code: 6848-145
Switchable measurement direction for measuring internal and external diameter
Adjustable measuring force: 2-5N
Movable probe travel: ±10mm
Digital indicator with IP54 dust/waterproof (when cap is lifted, no dust/waterproof)
Digital indicator uses absolute encoder, the original data remains after power off
Digital indicator uses rechargeable battery, for 30 hours continuous working
Digital indicator with automatic power off
Digital indicator reading in digital and analog
Digital indicator display can be rotated by 270°
Data output cable (keyboard format) is included in digital indicator
| Code | Accuracy | Resolution | Repeatability | Range of external diameter | Range of internal diameter |
|---|---|---|---|---|---|
| 6848-145 | 5µm | 0.0005mm/0.00002” | 2µm | 0-100mm | 25-120mm |

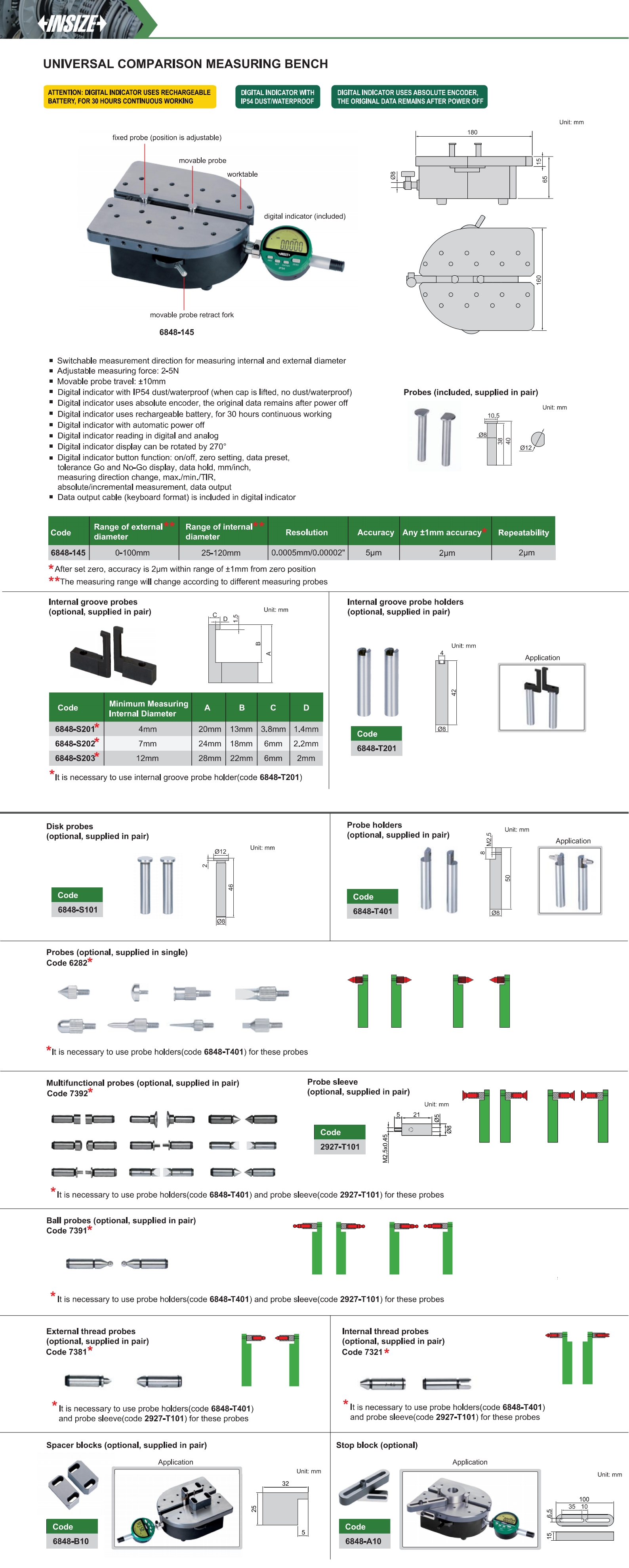

View the complete
