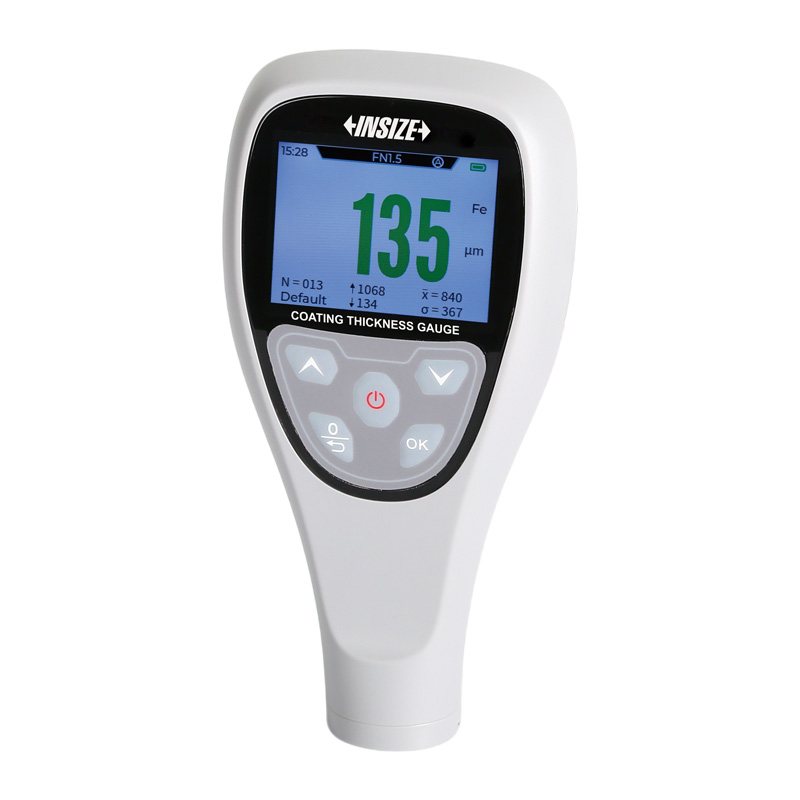

Coating Thickness Gauges (Advanced Type)
Code: 5411
Can measure the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate. Substrate: iron, steel, magnetic stainless steel. Coating: zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for nickel)
Can measure the thickness of non-conductive coating on non-magnetic metal substrate. Substrate: copper, aluminum, zinc, non-magnetic stainless steel. Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)

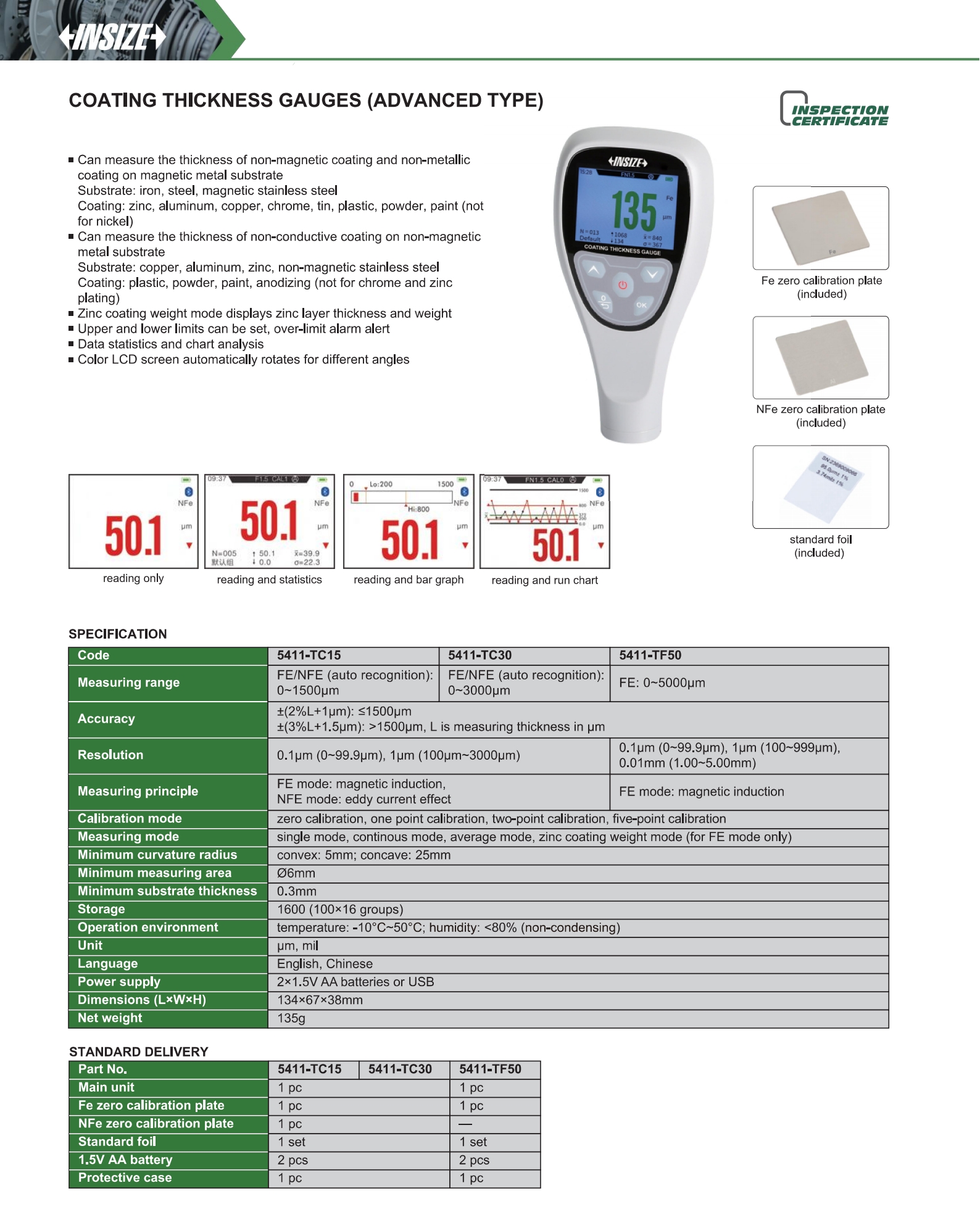

| Code | Range | Accuracy | Resolution | Data transmission |
|---|---|---|---|---|
| 5411-TC15 | FE/NFE 0~1500µm | ±(2%L+1µm): ≤1500µm | 0.1μm (0~99.9μm), 1μm (100μm~3000μm) | no |
| 5411-TC30 | FE/NFE 0~3000µm | ±(2%L+1µm): ≤1500µm, ±(3%L+1.5µm): >1500µm | 0.1μm (0~99.9μm), 1μm (100μm~3000μm) | no |
| 5411-TF50 | FE 0~5000µm | ±(2%L+1µm): ≤1500µm, ±(3%L+1.5µm): >1500µm | 0.1μm (0~99.9μm), 1μm (100~999μm), 0.01mm (1.00~5.00mm) | no |
