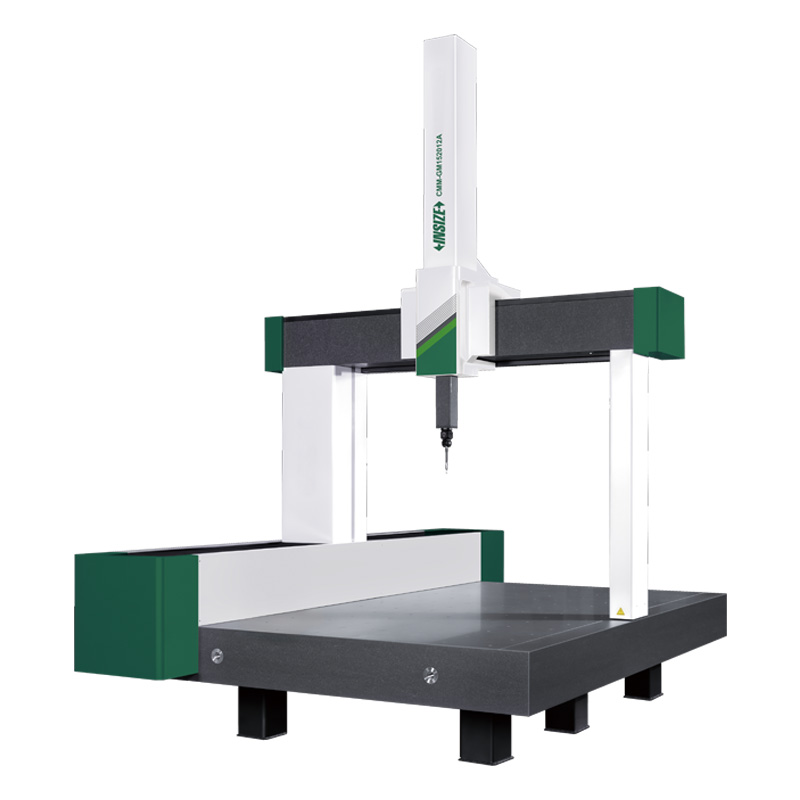

Coordinate Measuring Machines (Extra Large Range)
Code: CMM-GM/GE Series
Classic bridge structure, integrated workbench
High precision air bearing
The longest axis adopts high-precision gear profile transmission
| Code | Type | Range | Accuracy | Probe system |
|---|---|---|---|---|
| CMM-GM152012A | GM series | 1500×2000×1200mm | ±(3.8+L/250)µm | PH10T/TP20 |
| CMM-GM152012B | GM series | 1500×2000×1200mm | ±(3.4+L/250)μm | PH10M/SP25M |
| CMM-GM152512A | GM series | 1500×2500×1200mm | ±(3.8+L/250)µm | PH10T/TP20 |
| CMM-GM152512B | GM series | 1500×2500×1200mm | ±(3.4+L/250)µm | PH10M/SP25M |
| CMM-GM153012A | GM series | 1500×3000×1200mm | ±(3.8+L/250)µm | PH10T/TP20 |
| CMM-GM153012B | GM series | 1500×3000×1200mm | ±(3.4+L/250)µm | PH10M/SP25M |
| CMM-GM152015A | GM series | 1500×2000×1500mm | ±(4.0+L/250)µm | PH10T/TP20 |
| CMM-GM152015B | GM series | 1500×2000×1500mm | ±(3.6+L/250)μm | PH10M/SP25M |
| CMM-GM152515A | GM series | 1500×2500×1500mm | ±(4.0+L/250)µm | PH10T/TP20 |
| CMM-GM152515B | GM series | 1500×2500×1500mm | ±(3.6+L/250)µm | PH10M/SP25M |
| CMM-GM153015A | GM series | 1500×3000×1500mm | ±(4.0+L/250)µm | PH10T/TP20 |
| CMM-GM153015B | GM series | 1500×3000×1500mm | ±(3.6+L/250)μm | PH10M/SP25M |
| CMM-GM182512A | GM series | 1800×2500×1200mm | ±(4.2+L/250)µm | PH10T/TP20 |
| CMM-GM182512B | GM series | 1800×2500×1200mm | ±(3.8+L/250)µm | PH10M/SP25M |
| CMM-GM183012A | GM series | 1800×3000×1200mm | ±(4.2+L/250)µm | PH10T/TP20 |
| CMM-GM183012B | GM series | 1800×3000×1200mm | ±(3.8+L/250)µm | PH10M/SP25M |
| CMM-GM182515A | GM series | 1800×2500×1500mm | ±(4.4+L/250)µm | PH10T/TP20 |
| CMM-GM182515B | GM series | 1800×2500×1500mm | ±(4.0+L/250)µm | PH10M/SP25M |
| CMM-GM183015A | GM series | 1800×3000×1500mm | ±(4.4+L/250)µm | PH10T/TP20 |
| CMM-GM183015B | GM series | 1800×3000×1500mm | ±(4.0+L/250)µm | PH10M/SP25M |
| CMM-GM202512A | GM series | 2000×2500×1200mm | ±(4.4+L/250)µm | PH10T/TP20 |
| CMM-GM202512B | GM series | 2000×2500×1200mm | ±(4.0+L/250)µm | PH10M/SP25M |
| CMM-GM203012A | GM series | 2000×3000×1200mm | ±(4.4+L/250)µm | PH10T/TP20 |
| CMM-GM203012B | GM series | 2000×3000×1200mm | ±(4.0+L/250)µm | PH10M/SP25M |
| CMM-GM204012A | GM series | 2000×4000×1200mm | ±(4.4+L/250)µm | PH10T/TP20 |
| CMM-GM204012B | GM series | 2000×4000×1200mm | ±(4.0+L/250)µm | PH10M/SP25M |
| CMM-GM202515A | GM series | 2000×2500×1500mm | ±(4.6+L/250)µm | PH10T/TP20 |
| CMM-GM202515B | GM series | 2000×2500×1500mm | ±(4.2+L/250)µm | PH10M/SP25M |
| CMM-GM203015A | GM series | 2000×3000×1500mm | ±(4.6+L/250)µm | PH10T/TP20 |
| CMM-GM203015B | GM series | 2000×3000×1500mm | ±(4.2+L/250)µm | PH10M/SP25M |
| CMM-GM204015A | GM series | 2000×4000×1500mm | ±(4.6+L/250)µm | PH10T/TP20 |
| CMM-GM204015B | GM series | 2000×4000×1500mm | ±(4.2+L/250)µm | PH10M/SP25M |
| CMM-GE152012A | GE series | 1500×2000×1200mm | ±(3.2+L/330)μm | PH10T/TP20 |
| CMM-GE152012B | GE series | 1500×2000×1200mm | ±(2.8+L/330)μm | PH10M/SP25M |
| CMM-GE152512A | GE series | 1500×2500×1200mm | ±(3.2+L/330)μm | PH10T/TP20 |
| CMM-GE152512B | GE series | 1500×2500×1200mm | ±(2.8+L/330)μm | PH10M/SP25M |
| CMM-GE153012A | GE series | 1500×3000×1200mm | ±(3.2+L/330)μm | PH10T/TP20 |
| CMM-GE153012B | GE series | 1500×3000×1200mm | ±(2.8+L/330)μm | PH10M/SP25M |
| CMM-GE152015A | GE series | 1500×2000×1500mm | ±(3.4+L/330)μm | PH10T/TP20 |
| CMM-GE152015B | GE series | 1500×2000×1500mm | ±(3.0+L/330)μm | PH10M/SP25M |
| CMM-GE152515A | GE series | 1500×2500×1500mm | ±(3.4+L/330)μm | PH10T/TP20 |
| CMM-GE152515B | GE series | 1500×2500×1500mm | ±(3.0+L/330)μm | PH10M/SP25M |
| CMM-GE153015A | GE series | 1500×3000×1500mm | ±(3.4+L/330)μm | PH10T/TP20 |
| CMM-GE153015B | GE series | 1500×3000×1500mm | ±(3.0+L/330)μm | PH10M/SP25M |
| CMM-GE182512A | GE series | 1800×2500×1200mm | ±(3.4+L/330)μm | PH10T/TP20 |
| CMM-GE182512B | GE series | 1800×2500×1200mm | ±(3.0+L/330)μm | PH10M/SP25M |
| CMM-GE183012A | GE series | 1800×3000×1200mm | ±(3.4+L/330)μm | PH10T/TP20 |
| CMM-GE183012B | GE series | 1800×3000×1200mm | ±(3.0+L/330)μm | PH10M/SP25M |
| CMM-GE182515A | GE series | 1800×2500×1500mm | ±(3.6+L/330)μm | PH10T/TP20 |
| CMM-GE182515B | GE series | 1800×2500×1500mm | ±(3.2+L/330)μm | PH10M/SP25M |
| CMM-GE183015A | GE series | 1800×3000×1500mm | ±(3.6+L/330)μm | PH10T/TP20 |
| CMM-GE183015B | GE series | 1800×3000×1500mm | ±(3.2+L/330)μm | PH10M/SP25M |
| CMM-GE202512A | GE series | 2000×2500×1200mm | ±(3.6+L/330)μm | PH10T/TP20 |
| CMM-GE202512B | GE series | 2000×2500×1200mm | ±(3.2+L/330)μm | PH10M/SP25M |
| CMM-GE203012A | GE series | 2000×3000×1200mm | ±(3.6+L/330)μm | PH10T/TP20 |
| CMM-GE203012B | GE series | 2000×3000×1200mm | ±(3.2+L/330)μm | PH10M/SP25M |
| CMM-GE204012A | GE series | 2000×4000×1200mm | ±(3.6+L/330)μm | PH10T/TP20 |
| CMM-GE204012B | GE series | 2000×4000×1200mm | ±(3.2+L/330)μm | PH10M/SP25M |
| CMM-GE202515A | GE series | 2000×2500×1500mm | ±(3.8+L/330)μm | PH10T/TP20 |
| CMM-GE202515B | GE series | 2000×2500×1500mm | ±(3.4+L/330)μm | PH10M/SP25M |
| CMM-GE203015A | GE series | 2000×3000×1500mm | ±(3.8+L/330)μm | PH10T/TP20 |
| CMM-GE203015B | GE series | 2000×3000×1500mm | ±(3.4+L/330)μm | PH10M/SP25M |
| CMM-GE204015A | GE series | 2000×4000×1500mm | ±(3.8+L/330)μm | PH10T/TP20 |
| CMM-GE204015B | GE series | 2000×4000×1500mm | ±(3.4+L/330)μm | PH10M/SP25M |

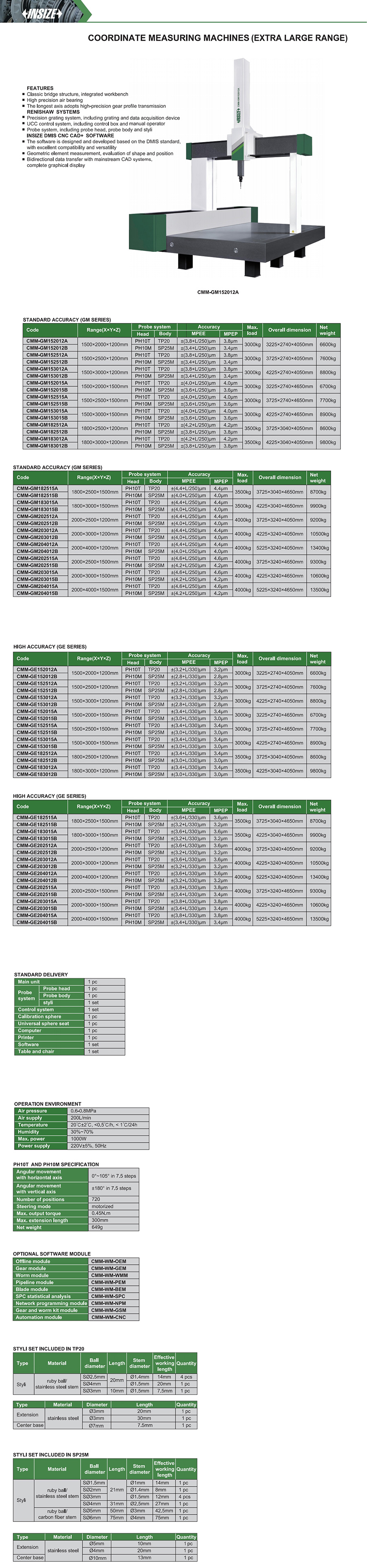

View the complete
product specifications
