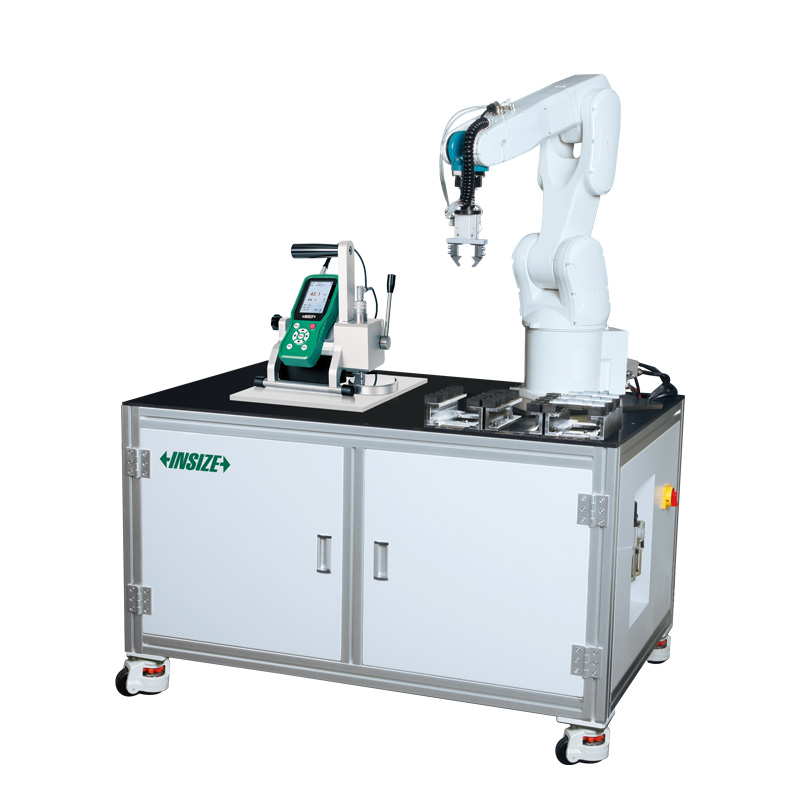

Automatic Ultrasonic Hardness Test System
Code: RBT-9646
6-axis industrial robot for high speed and precision, IP67, triple protection
Portable ultrasonic hardness test system automatically tests the hardness of the workpiece and provides real-time feedback to the control system
Control system Modbus Tcp via bus communication, high speed, high efficiency and easy to extend
| Code | Measurement Range | Convertible parameters |
|---|---|---|
| RBT-9646 | 50-1599HV, 20-68HRC, 85-650HB, 41-100HRB, 61-85.6HRA, 34.2-97.3HS, 255-2180MPa | HRA, HRB, HRC, HBW, HS, Mpa |

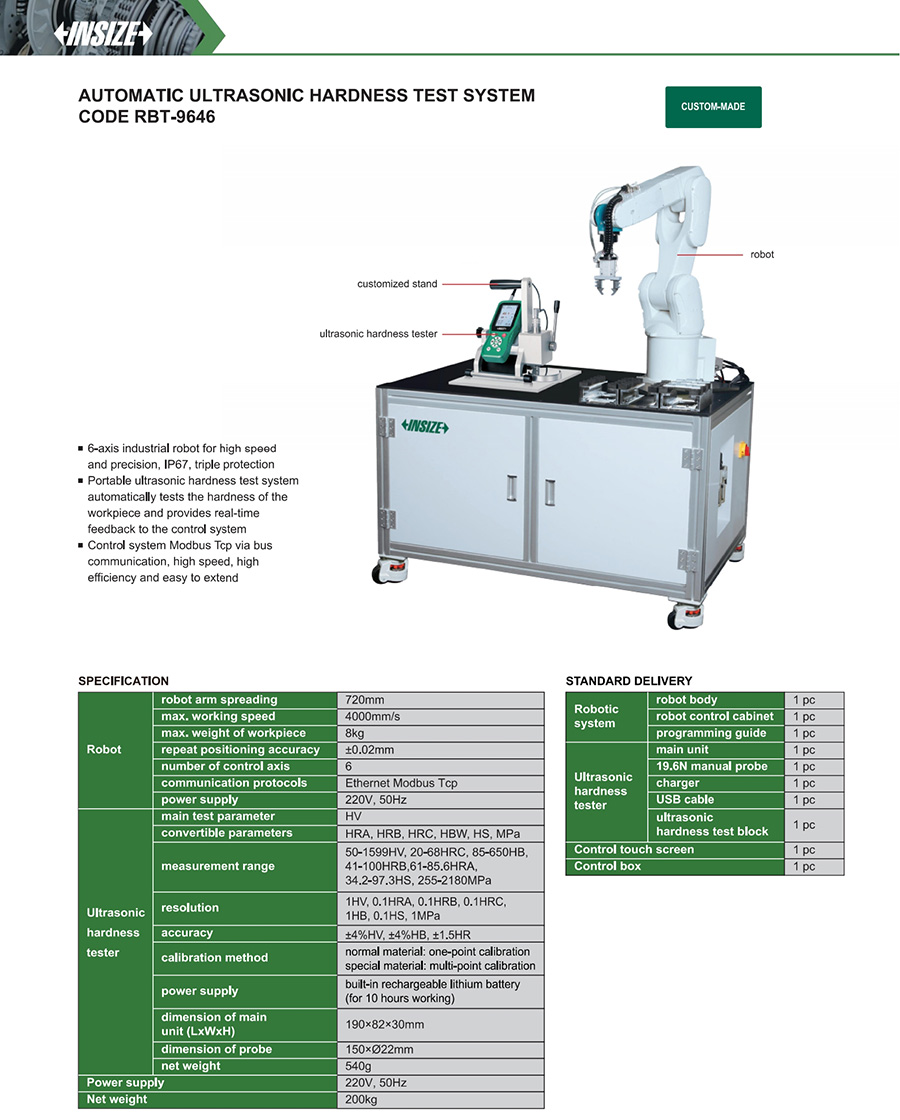

View the complete
product specifications
