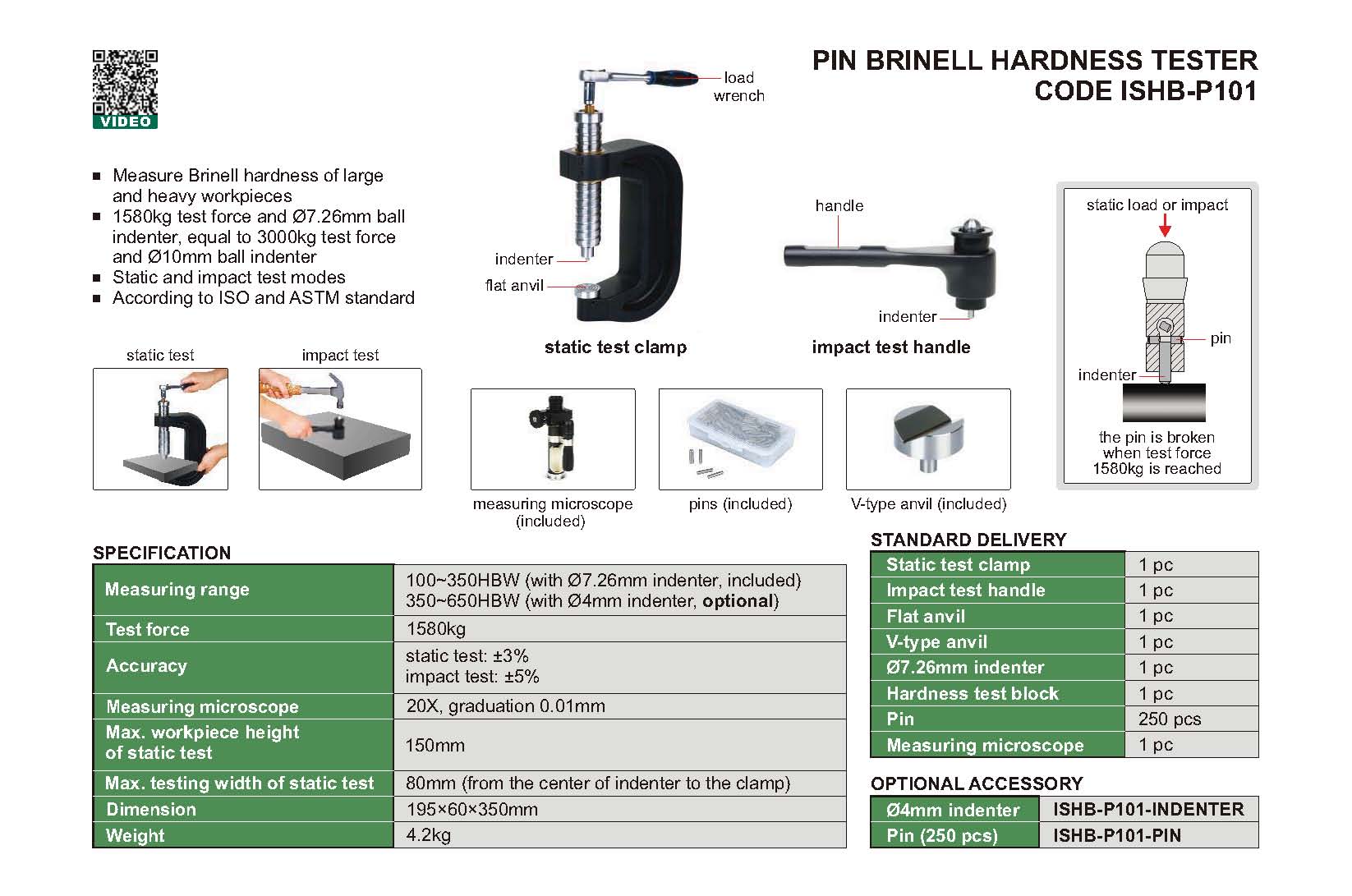

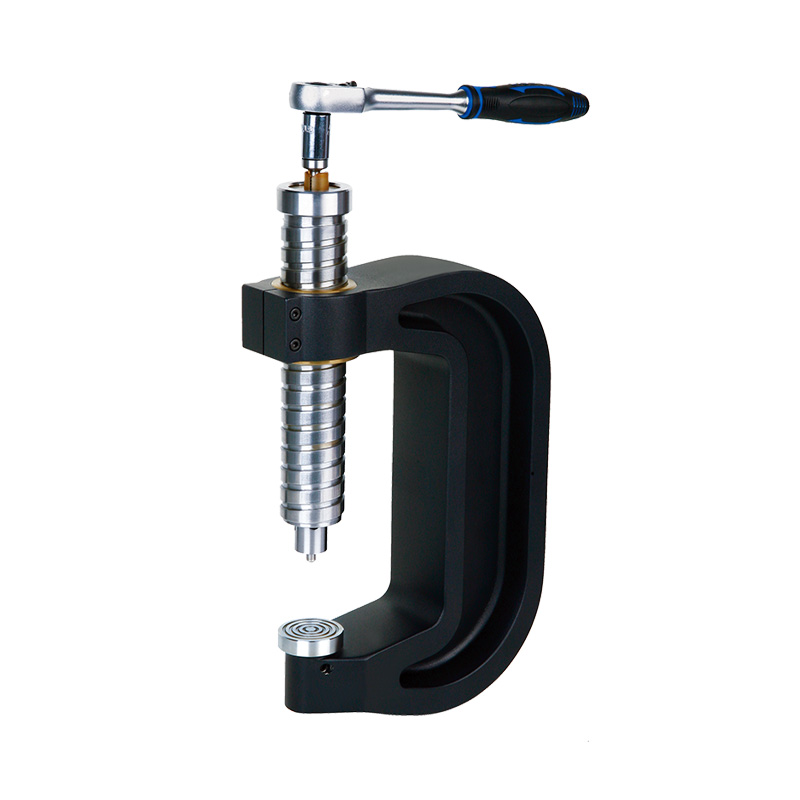

Pin Brinell Hardness Tester
Code: ISHB-P101
Measure Brinell hardness of large and heavy workpieces
1580kg test force and Ø7.26mm ball indenter, equal to 3000kg test force and Ø10mm ball indenter
Static and impact test modes
According to ISO and ASTM standard
| Code | Range | Test force | Max. workpiece height | Max. testing width |
|---|---|---|---|---|
| ISHB-P101 | 100-350HBW (with Ø7.26mm indenter， included) | 1580kg | 150mm | 80mm (from the center of indenter to the clamp) |
