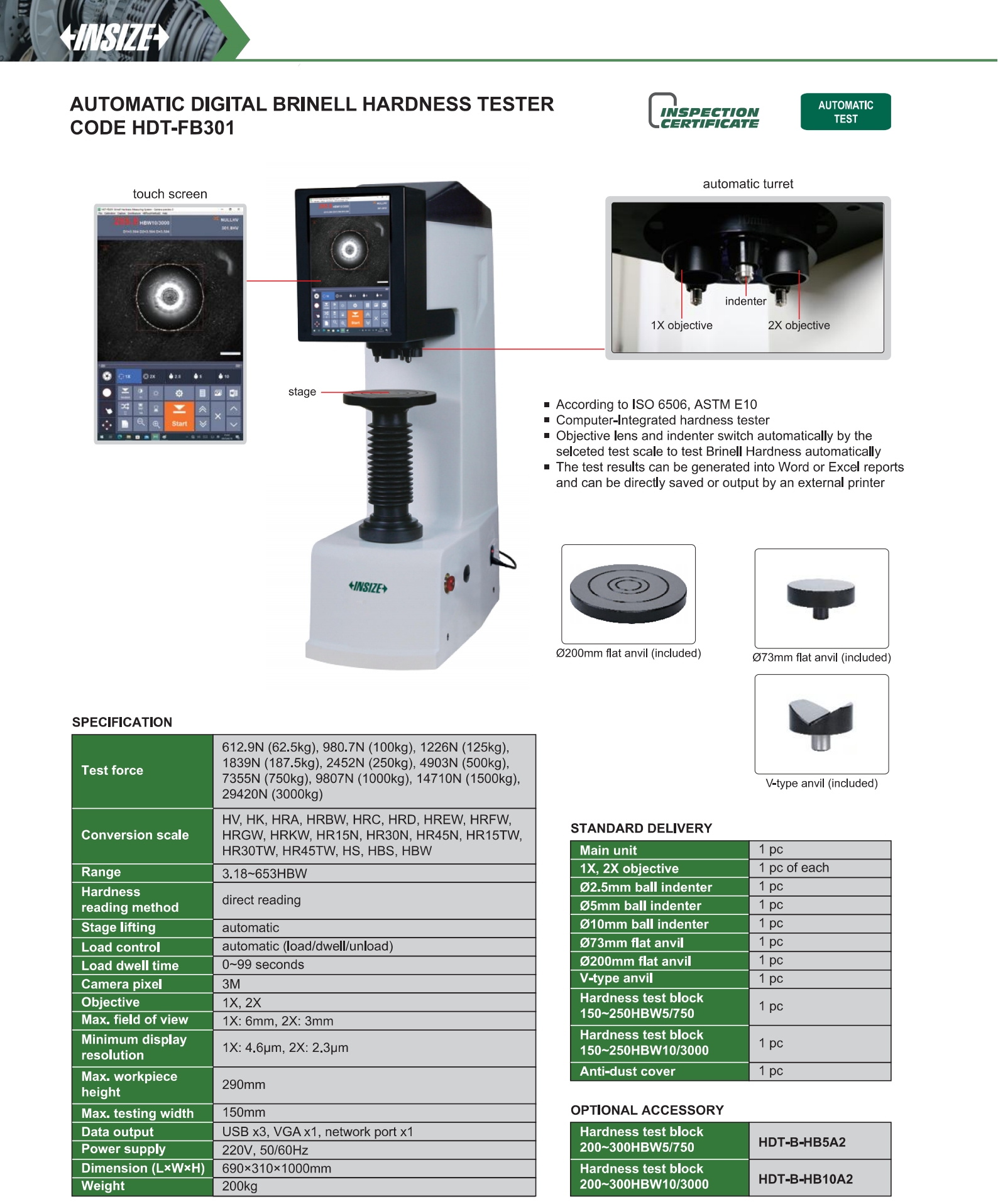

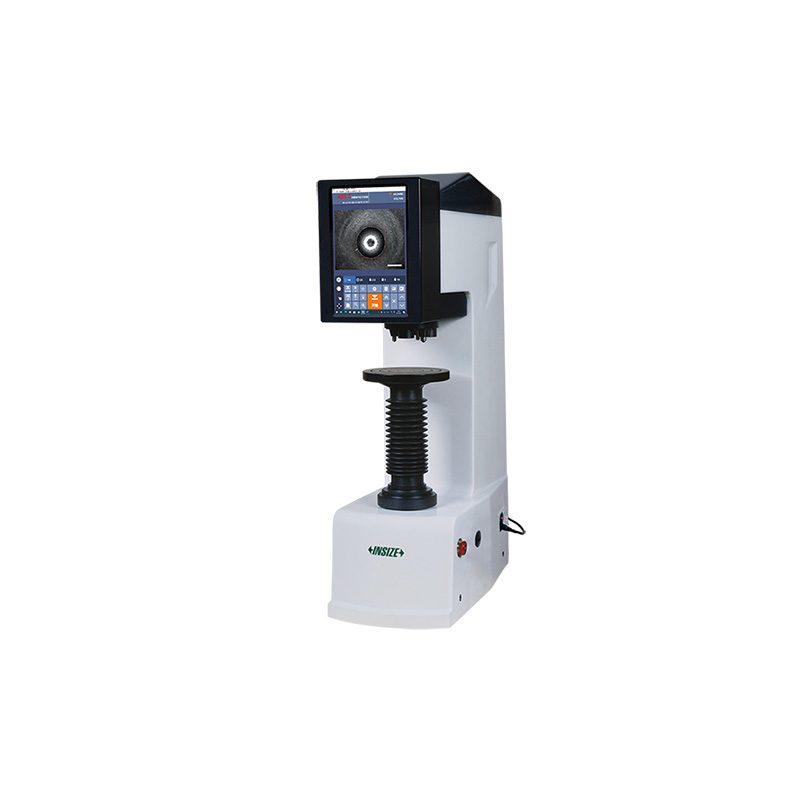

Automatic Digital Brinell Hardness Tester
Code: HDT-FB301
According to ISO 6506, ASTM E10
Computer-Integrated hardness tester
Objective lens and indenter switch automatically by the selceted test scale to test Brinell Hardness automatically
The test results can be generated into Word or Excel reports and can be directly saved or output by an external printer
| Code | Range | Test force | Max. workpiece height | Max. testing width | Stage lefting |
|---|---|---|---|---|---|
| HDT-FB301 | 3.18~653HBW | 62.5kg, 100kg, 125kg, 187.5kg, 250kg, 500kg, 750kg, 1000kg, 1500kg, 3000kg | 290mm | 150mm | automatic |
View the complete
product specifications
