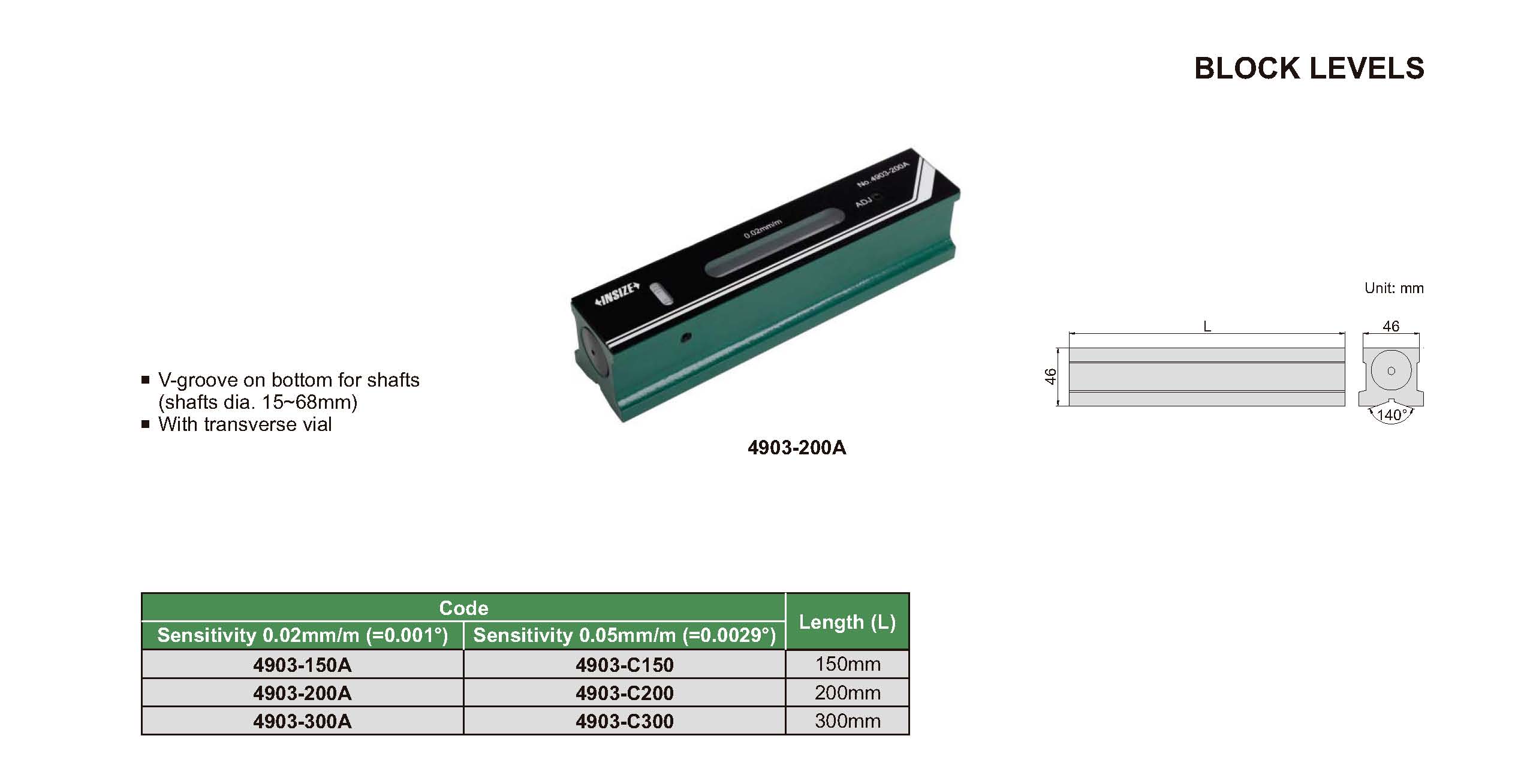

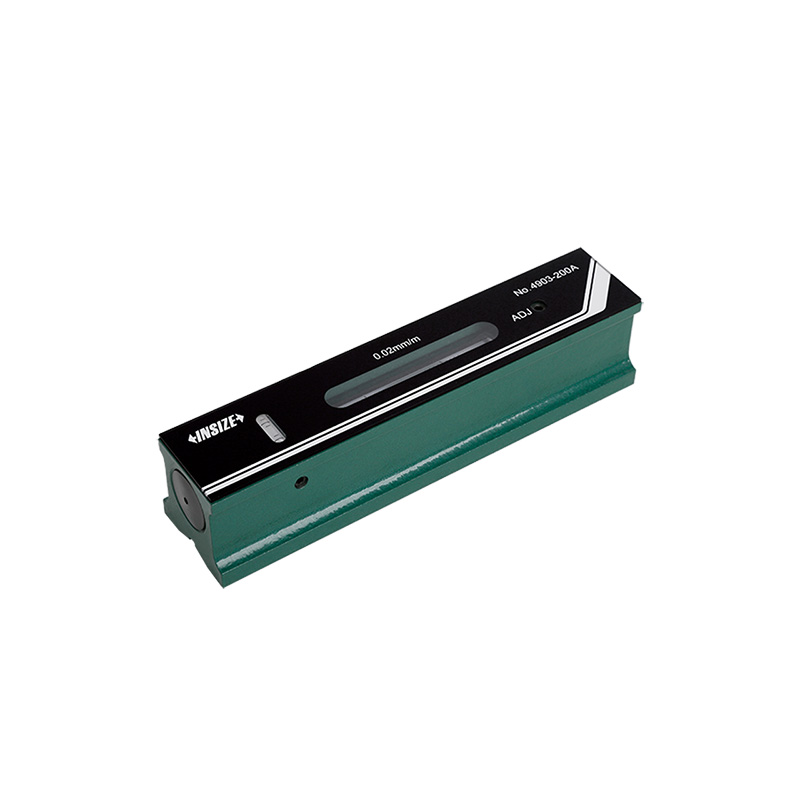

Block Levels
Code: 4903
V-groove on bottom for shafts (shafts dia. 15~68mm)
With transverse vial
| Code | Length | Sensitivity |
|---|---|---|
| 4903-150A | 150mm | 0.02mm/m (=0.001°) |
| 4903-200A | 200mm | 0.02mm/m (=0.001°) |
| 4903-300A | 300mm | 0.02mm/m (=0.001°) |
| 4903-C150 | 150mm | 0.05mm/m (=0.0029°) |
| 4903-C200 | 200mm | 0.05mm/m (=0.0029°) |
| 4903-C300 | 300mm | 0.05mm/m (=0.0029°) |
