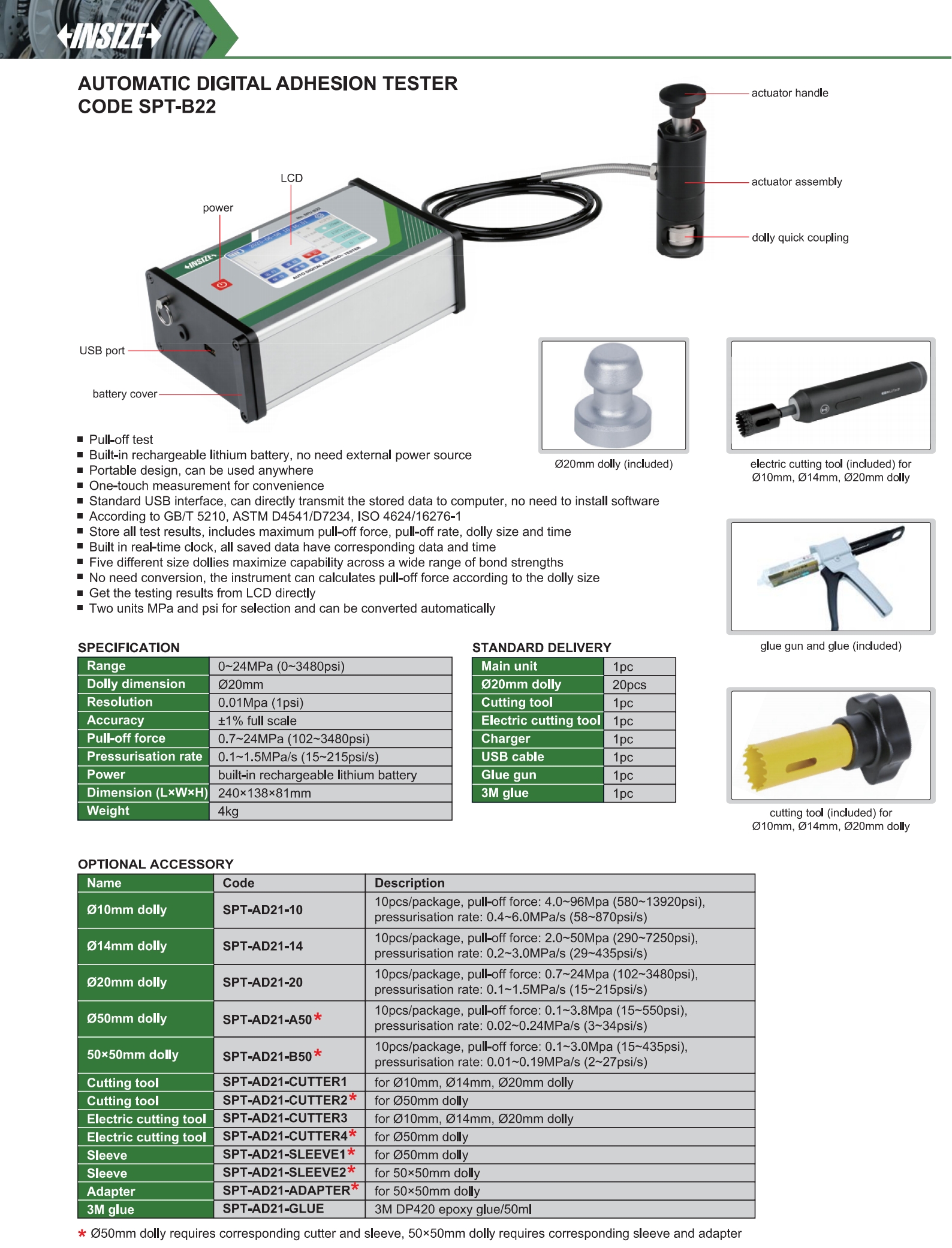

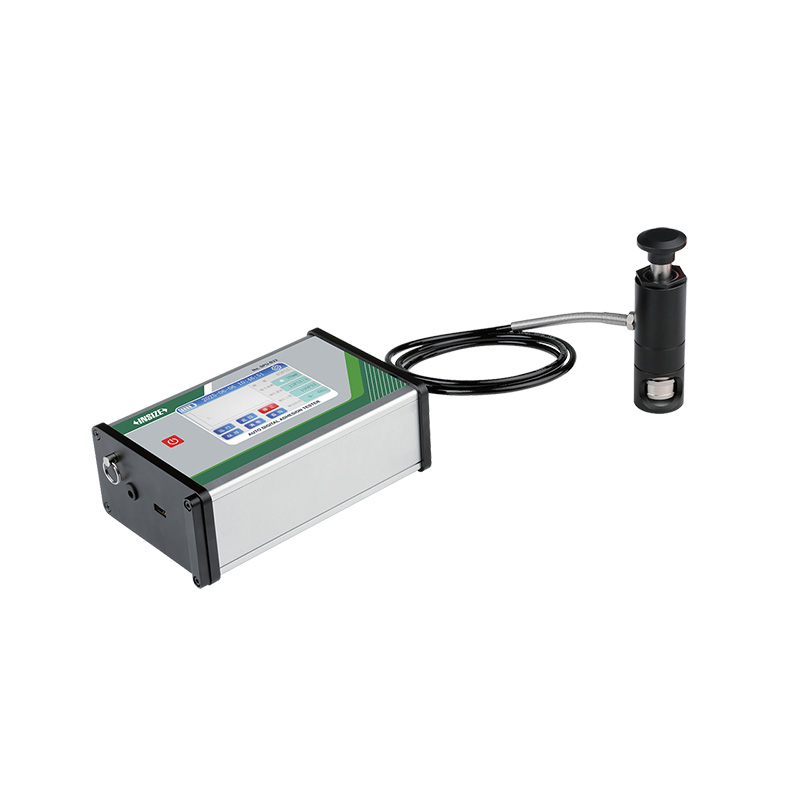

Automatic Digital Adhesion Tester
Code: SPT-B22
One-touch measurement for convenience
Standard USB interface, can directly transmit the stored data to computer, no need to install software
According to GB/T 5210, ASTM D4541/D7234, ISO 4624/16276-1
Built in real-time clock, all saved data have corresponding data and time
Five different size dollies maximize capability across a wide range of bond strengths
No need conversion, the instrument can calculates pull-of force according to the dolly size
Get the testing results from LCD directly
Two units MPa and psi for selection and can be converted automatically
| Code | Range | Accuracy | Resolution | Dolly diameter |
|---|---|---|---|---|
| SPT-B22 | 0~24MPa (0~3480psi) | ±1% full scale | 0.01Mpa (1psi) | Ø20mm |
