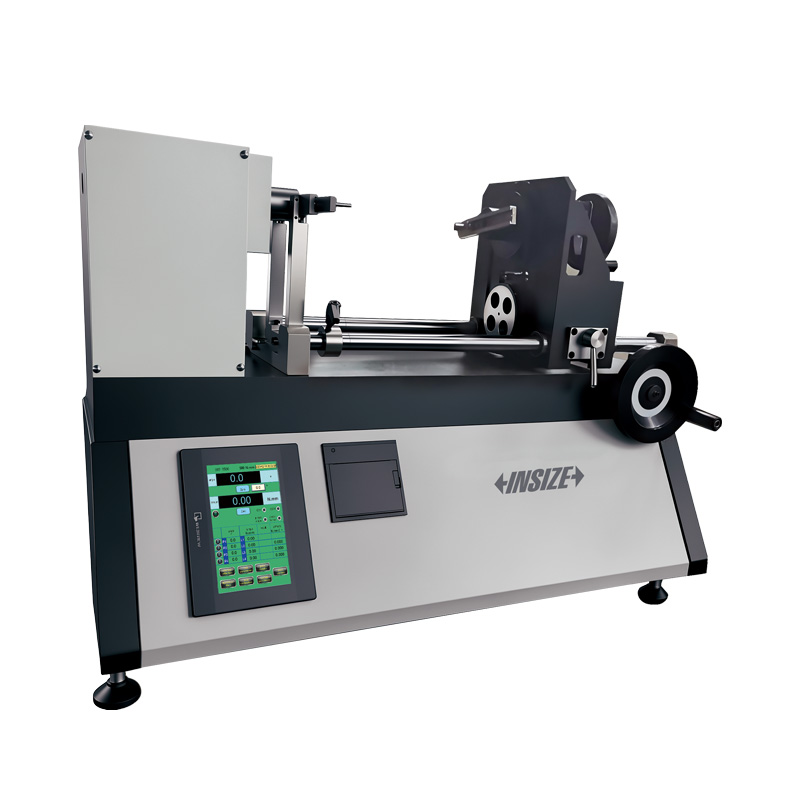

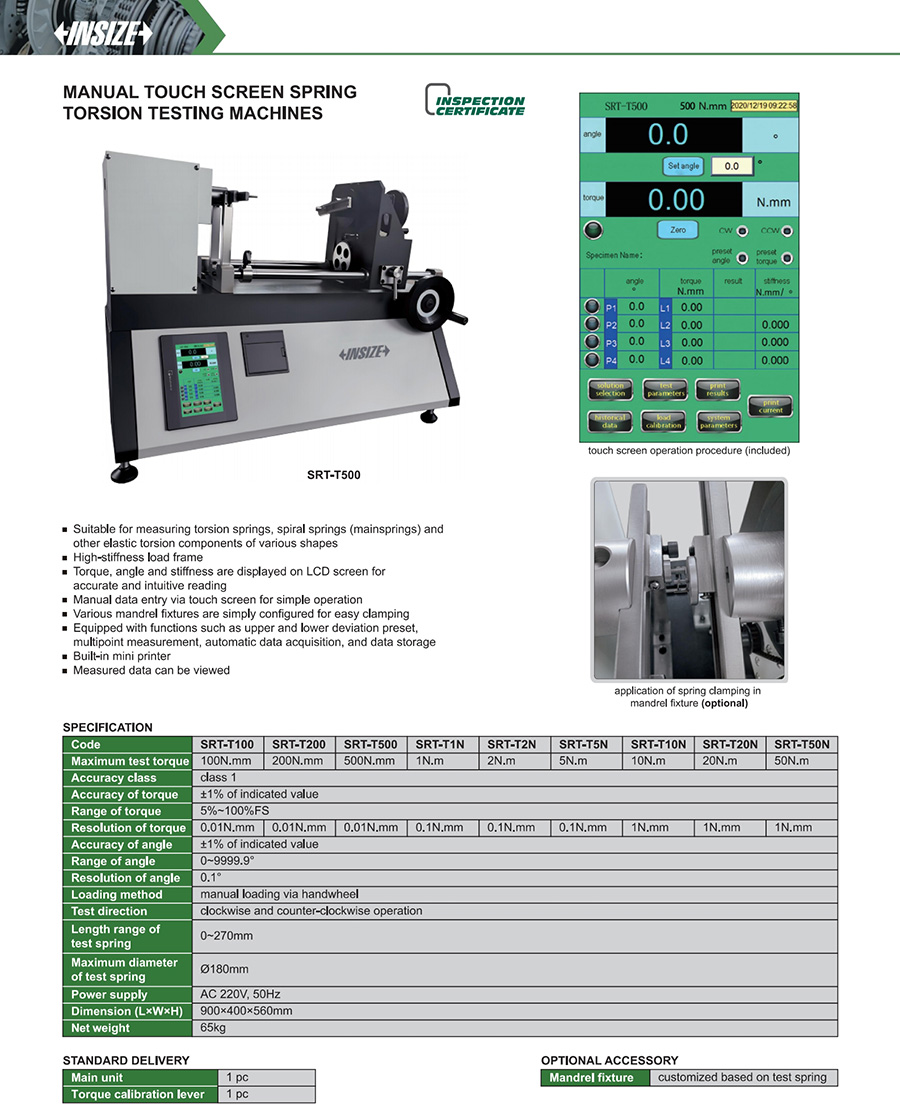

Manual Touch Screen Spring Torsion Testing Machines
Code: SRT-T Series
Suitable for measuring torsion springs, spiral springs (mainsprings) and other elastic torsion components of various shapes
High-stiffness load frame
Torque, angle and stiffness are displayed on LCD screen for accurate and intuitive reading
Manual data entry via touch screen for simple operation
Various mandrel fixtures are simply configured for easy clamping
Equipped with functions such as upper and lower deviation preset, multipoint measurement, automatic data acquisition, and data storage
Built-in mini printer
Measured data can be viewed
| Code | Type | Max. test torque |
|---|---|---|
| SRT-T100 | spring torsion | 100N.mm |
| SRT-T200 | spring torsion | 200N.mm |
| SRT-T500 | spring torsion | 500N.mm |
| SRT-T1N | spring torsion | 1N.m |
| SRT-T2N | spring torsion | 2N.m |
| SRT-T5N | spring torsion | 5N.m |
| SRT-T10N | spring torsion | 10N.m |
| SRT-T20N | spring torsion | 20N.m |
| SRT-T50N | spring torsion | 50N.m |
