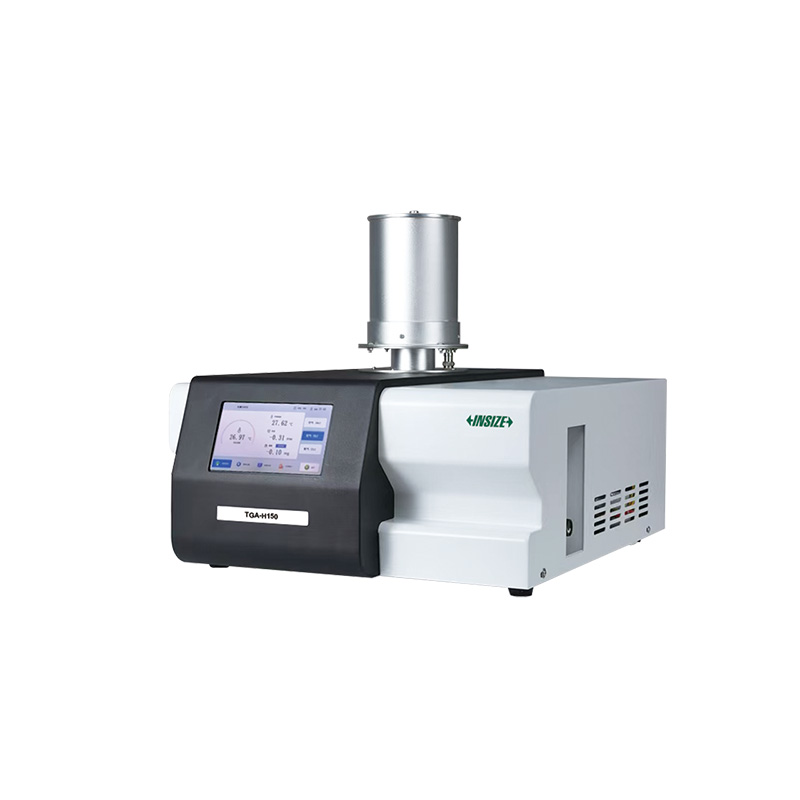

Thermogravimetric Analyzers
Code: TGA-H series
Widely used in plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials, etc.
During the heating, constant-temperature or cooling process, observe the change in the sample's quality with respect to temperature or time
The heating furnace is equipped with a double-row-wound platinum-rhodium alloy wire with low interference and high temperature resistance
The tray sensor is meticulously crafted from high-temperature-resistant, anti-oxidant and corrosion-resistant platinum-rhodium alloy
The water temperature stabilizing device isolates the heating effect from the micro-thermometer

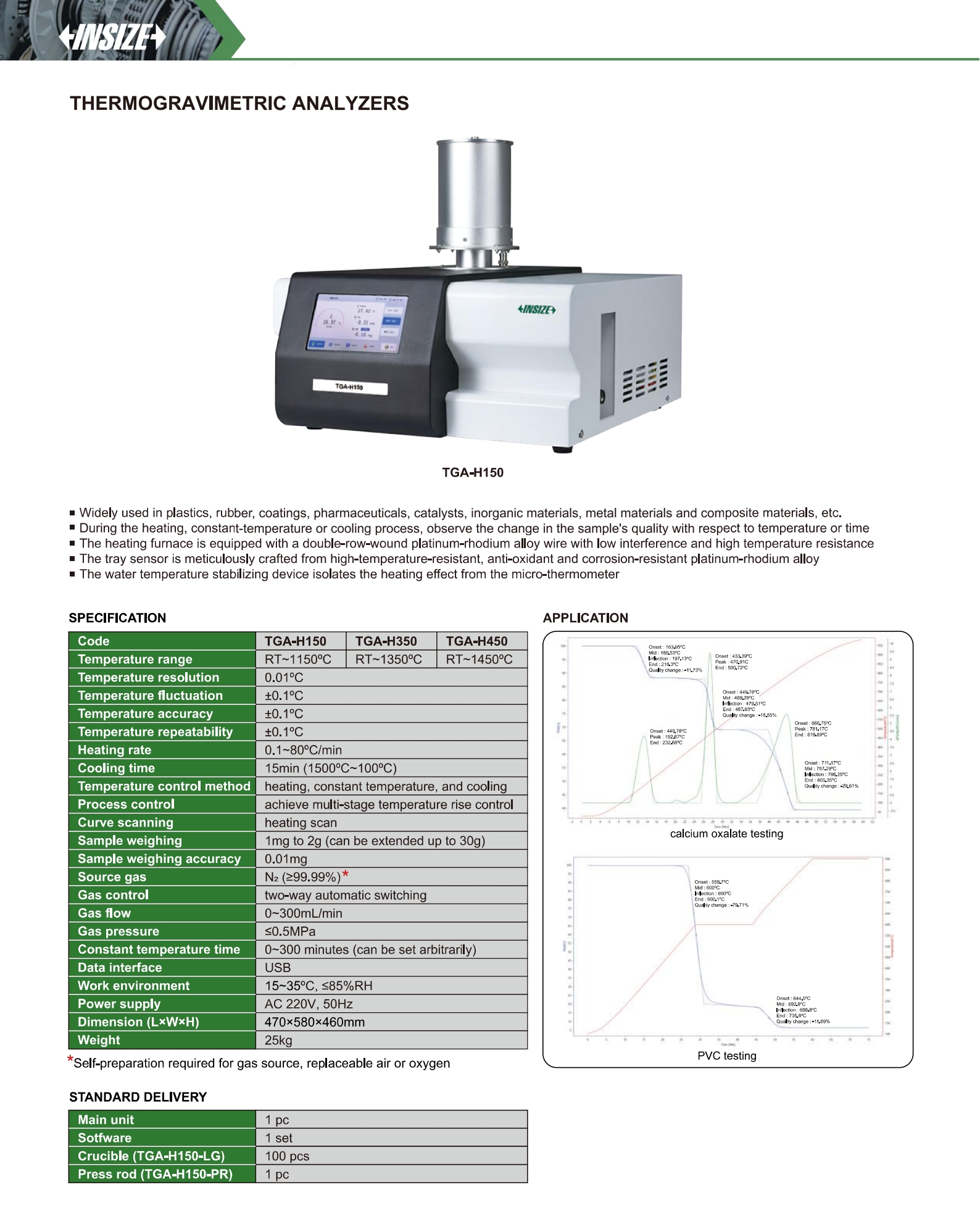

| Code | Temperature range | Sample weighing | Sample weighing accuracy |
|---|---|---|---|
| TGA-H150 | RT~1150ºC | 1mg to 2g | 0.01mg |
| TGA-H350 | RT~1350ºC | 1mg to 2g | 0.01mg |
| TGA-H450 | RT~1450ºC | 1mg to 2g | 0.01mg |
