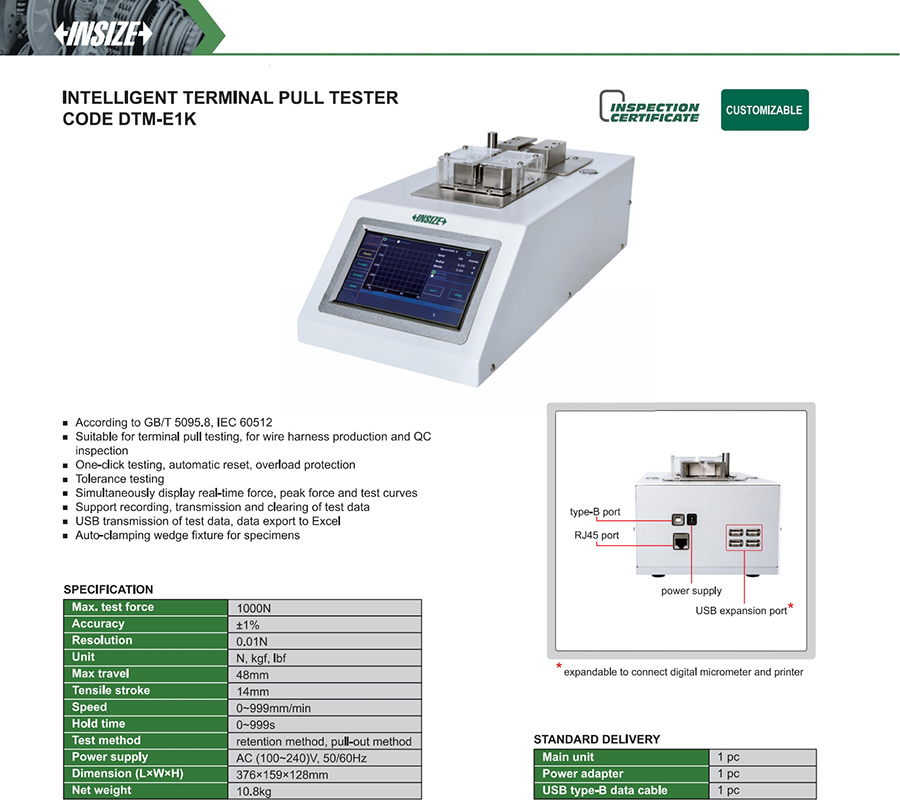

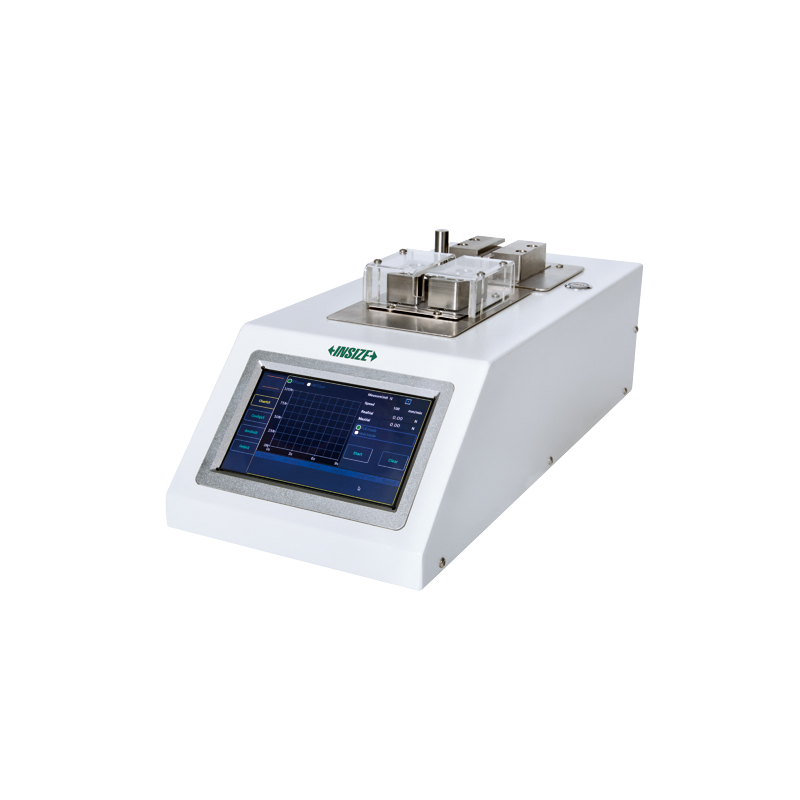

Intelligent Terminal Pull Tester
Code: DTM-E1K
According to GB/T 5095.8, IEC 60512
Suitable for terminal pull testing, for wire harness production and QC inspection
One-click testing, automatic reset, overload protection
Tolerance testing
Simultaneously display real-time force, peak force and test curves
Support recording, transmission and clearing of test data
USB transmission of test data, data export to Excel
Auto-clamping wedge fixture for specimens
| Code | Accuracy | Test methods | Unit | Max. test force |
|---|---|---|---|---|
| DTM-E1K | ±1% | retention method, pull-out method | N, kgf, lbf | 1000N |
