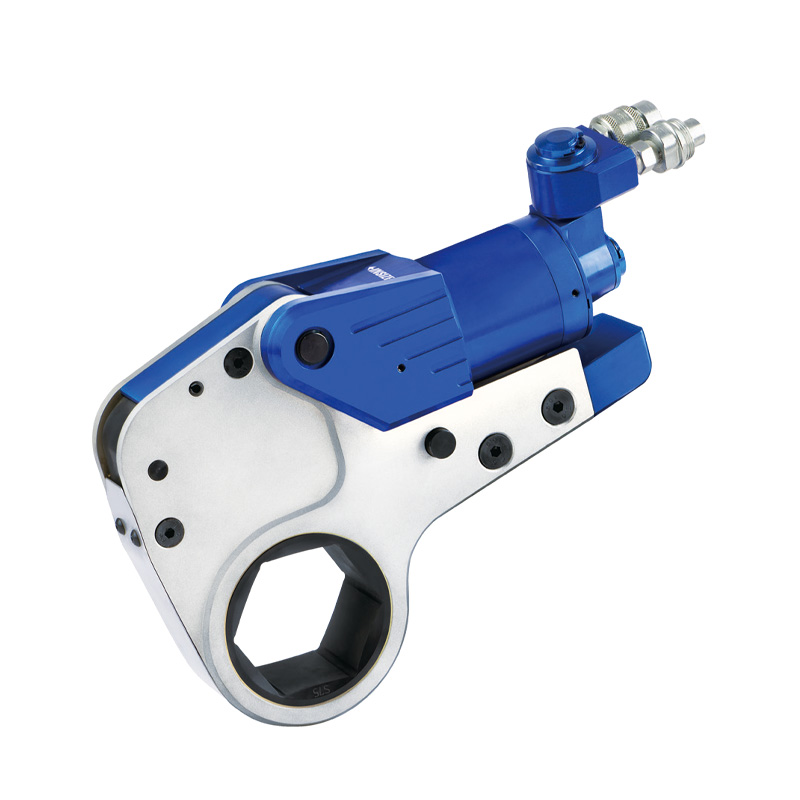

Hollow Hydraulic Torque Wrenches
Code: IST-2HW Series
Constructed with high-strength materials, the tool is lightweight and delivers an outstanding torque-to-weight ratio
Ratchet and pawl adopt coarse-tooth structure, ensuring sufficient safety margin under full load
Special anti-reversal detent prevents reverse rotation caused by springback of deformed bolts
360°×360° oil pipe fitting can be connected to oil pipe in any direction
Compact rounded corners make it easy to operate in tight spaces
Work head is fitted with a bronze bushing which offers excellent wear resistance, eliminates jamming and maintains high torque accuracy
Special anti-corrosion surface is suitable for harsh operating environments
| Code | Range | Accuracy | Opposite-side size of hexagonal work heads (D) | Suitable metric nuts |
|---|---|---|---|---|
| IST-2HW22 | 228~2287N.m | ±3% | 19~60mm | 19~60mm |
| IST-2HW52 | 522~5226N.m | ±3% | 36~80mm | 36~80mm |
| IST-2HW110 | 1104~11049N.m | ±3% | 46~105mm | 46~105mm |
| IST-2HW181 | 1816~18165N.m | ±3% | 60~120mm | 60~120mm |
| IST-2HW420 | 4200~42005N.m | ±3% | 90~155mm | 90~155mm |

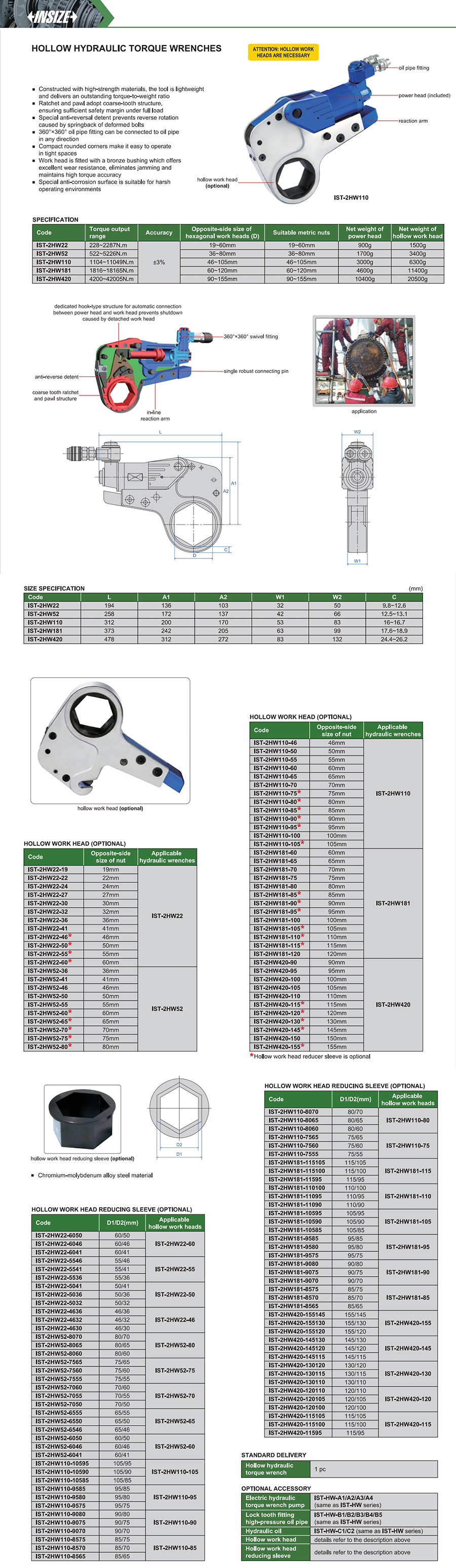

View the complete
product specifications
