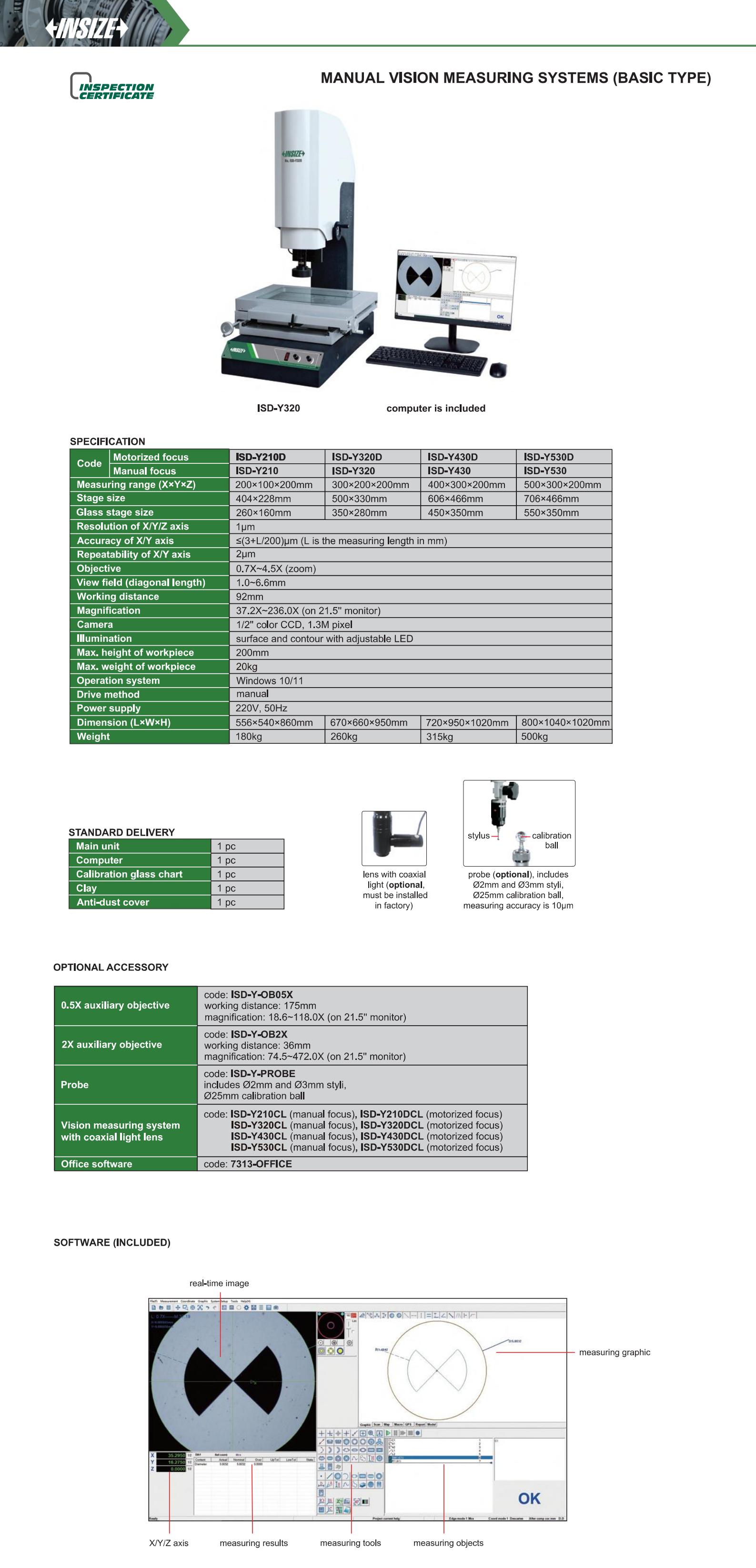

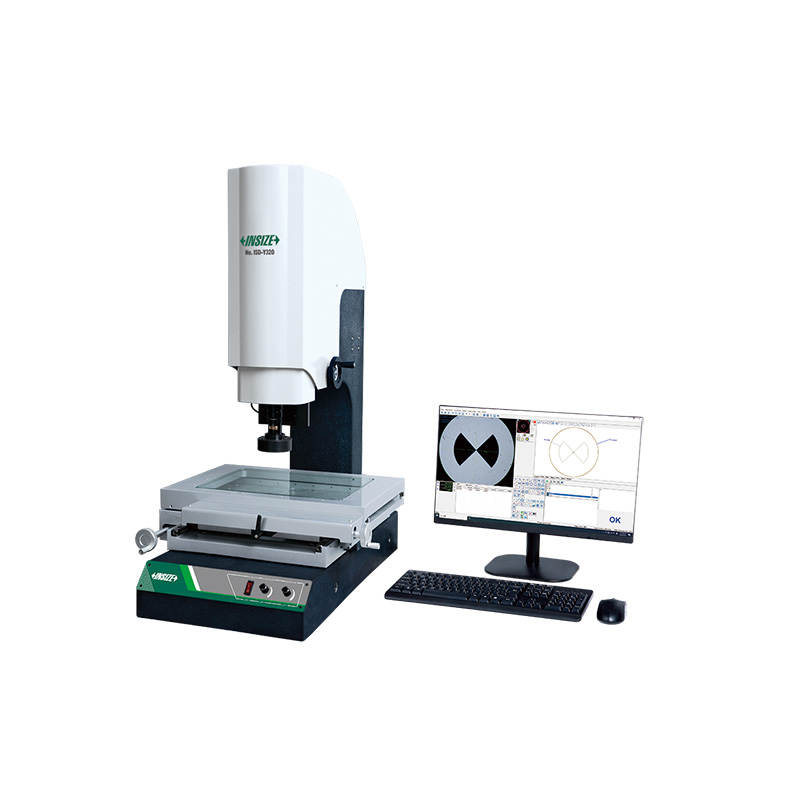

Manual Vision Measuring Systems (Basic Type)
Code: ISD-Y
| Code | Range | Accuracy | Resolution | Repeatability | Magnification | Max. load |
|---|---|---|---|---|---|---|
| ISD-Y210D | 200×100×200mm | ≤(3+L/200)μm | 1μm | 2μm | 37.2X~236.0X (on 21.5'' monitor) | 20kg |
| ISD-Y320D | 300×200×200mm | ≤(3+L/200)μm | 1μm | 2μm | 37.2X~236.0X (on 21.5'' monitor) | 20kg |
| ISD-Y430D | 400×300×200mm | ≤(3+L/200)μm | 1μm | 2μm | 37.2X~236.0X (on 21.5'' monitor) | 20kg |
| ISD-Y530D | 500×300×200mm | ≤(3+L/200)μm | 1μm | 2μm | 37.2X~236.0X (on 21.5'' monitor) | 20kg |
| ISD-Y210 | 200×100×200mm | ≤(3+L/200)μm | 1μm | 2μm | 37.2X~236.0X (on 21.5'' monitor) | 20kg |
| ISD-Y320 | 300×200×200mm | ≤(3+L/200)μm | 1μm | 2μm | 37.2X~236.0X (on 21.5'' monitor) | 20kg |
| ISD-Y430 | 400×300×200mm | ≤(3+L/200)μm | 1μm | 2μm | 37.2X~236.0X (on 21.5'' monitor) | 20kg |
| ISD-Y530 | 500×300×200mm | ≤(3+L/200)μm | 1μm | 2μm | 37.2X~236.0X (on 21.5'' monitor) | 20kg |
