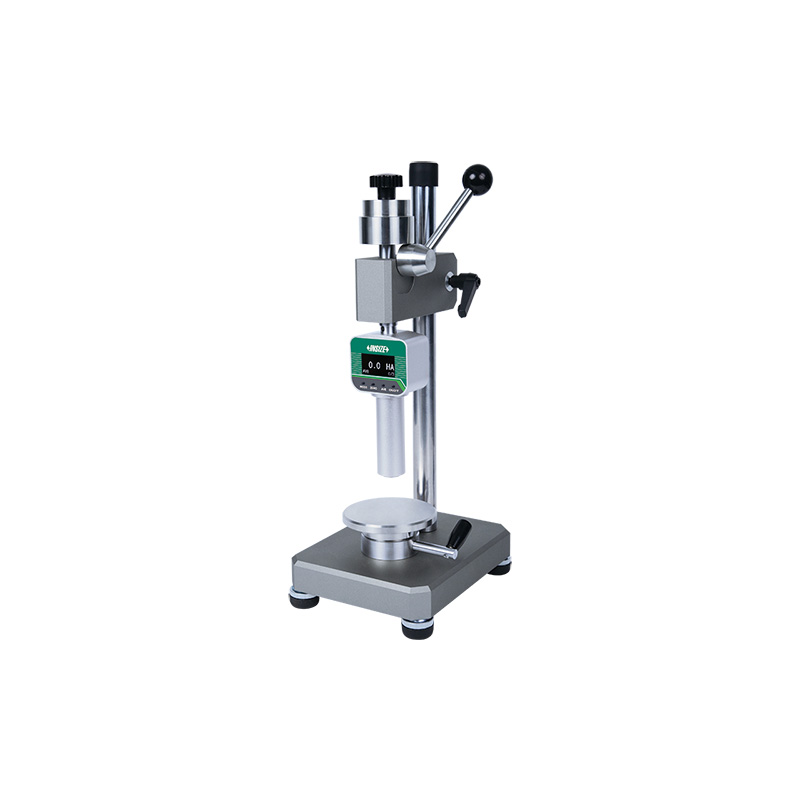

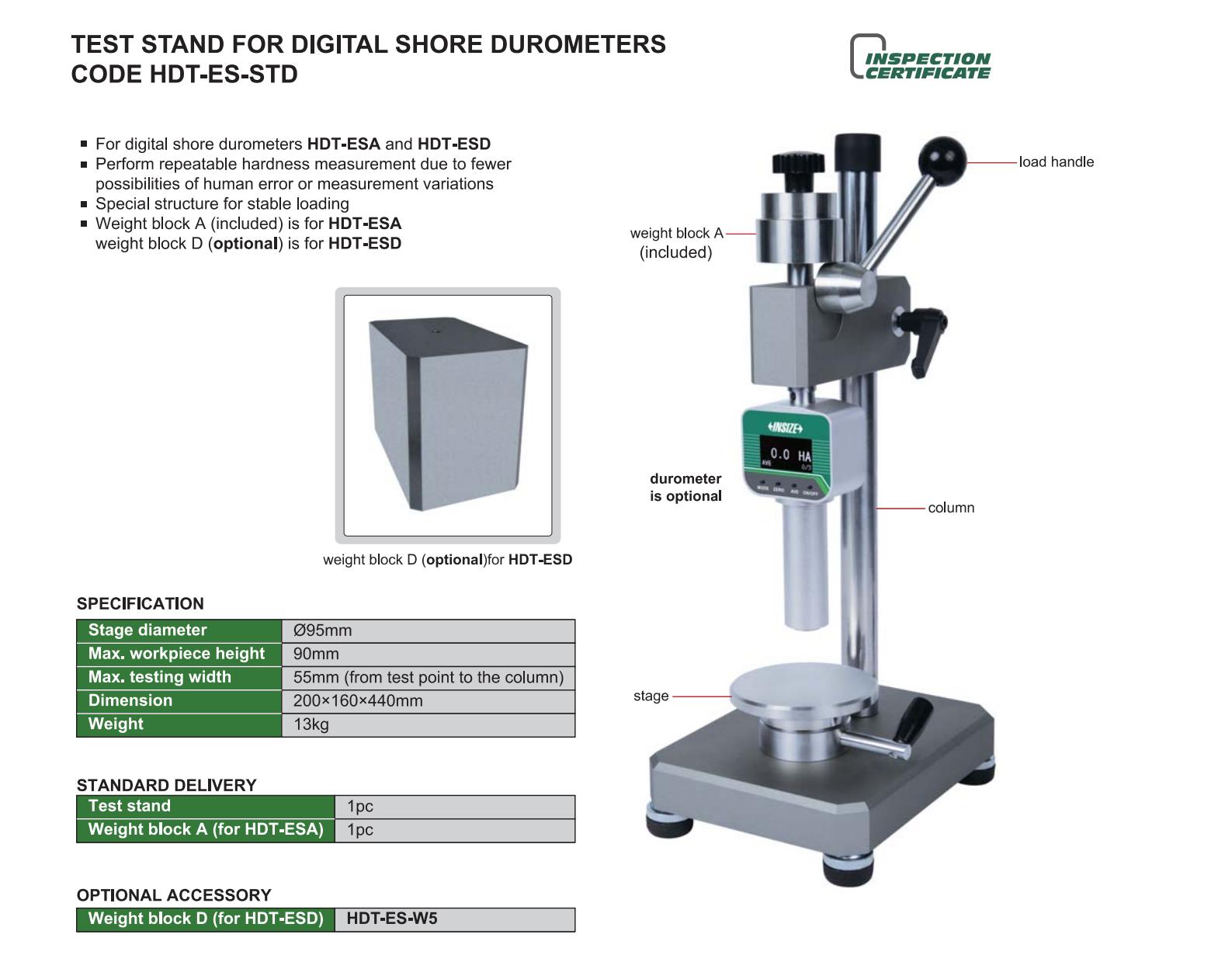

Test Stand For Digital Shore Durometers
Code: HDT-ES-STD
For digital shore durometers HDT-ESA and HDT-ESD
Perform repeatable hardness measurement due to fewer possibilities of human error or measurement variations
Special structure for stable loading
Weight block A (included) is for HDT-ESA weight block D (optional) is for HDT-ESD
| Code | Max. workpiece height | Max. testing width | Stage diameter |
|---|---|---|---|
| HDT-ES-STD | 90mm | 55mm (from test point to the column) | Ø95mm |
