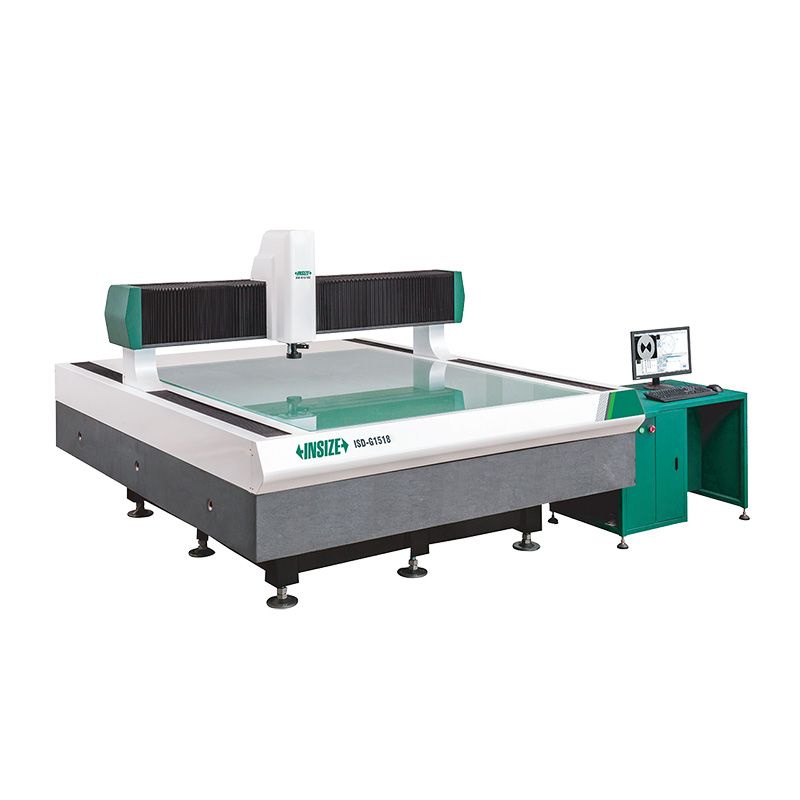

CNC Vision Measuring Systems
Code: ISD-G series
Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
Servo motors for X, Y, Z axis
Double close-loop motion control, with precise positioning performance in high-speed movement
Granite body, more stable
SPC function for large quantity measurement
| Code | Range | Accuracy | Resolution | Repeatability | Magnification | Max. load |
|---|---|---|---|---|---|---|
| ISD-G608 | 600×800×200mm | ≤(3.5+L/200)µm | 0.5µm | 3µm | 37.2X~236.0X (on 21.5'' monitor) | 35kg |
| ISD-G1012 | 1000×1200×200mm | ≤(3.5+L/200)µm | 0.5µm | 3µm | 37.2X~236.0X (on 21.5'' monitor) | 35kg |
| ISD-G1518 | 1500×1800×200mm | ≤(4.5+L/200)µm | 0.5µm | 3µm | 37.2X~236.0X (on 21.5'' monitor) | 35kg |

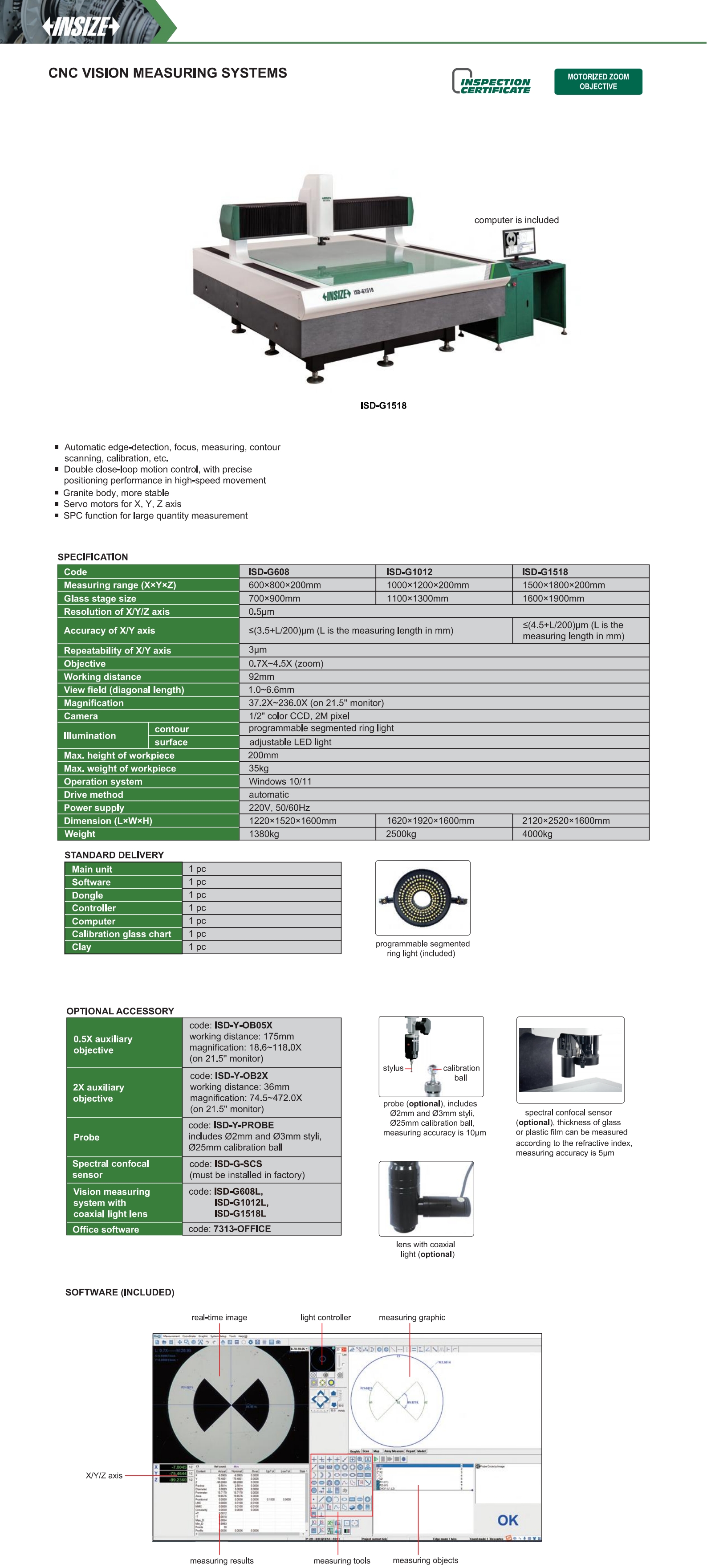

View the complete
