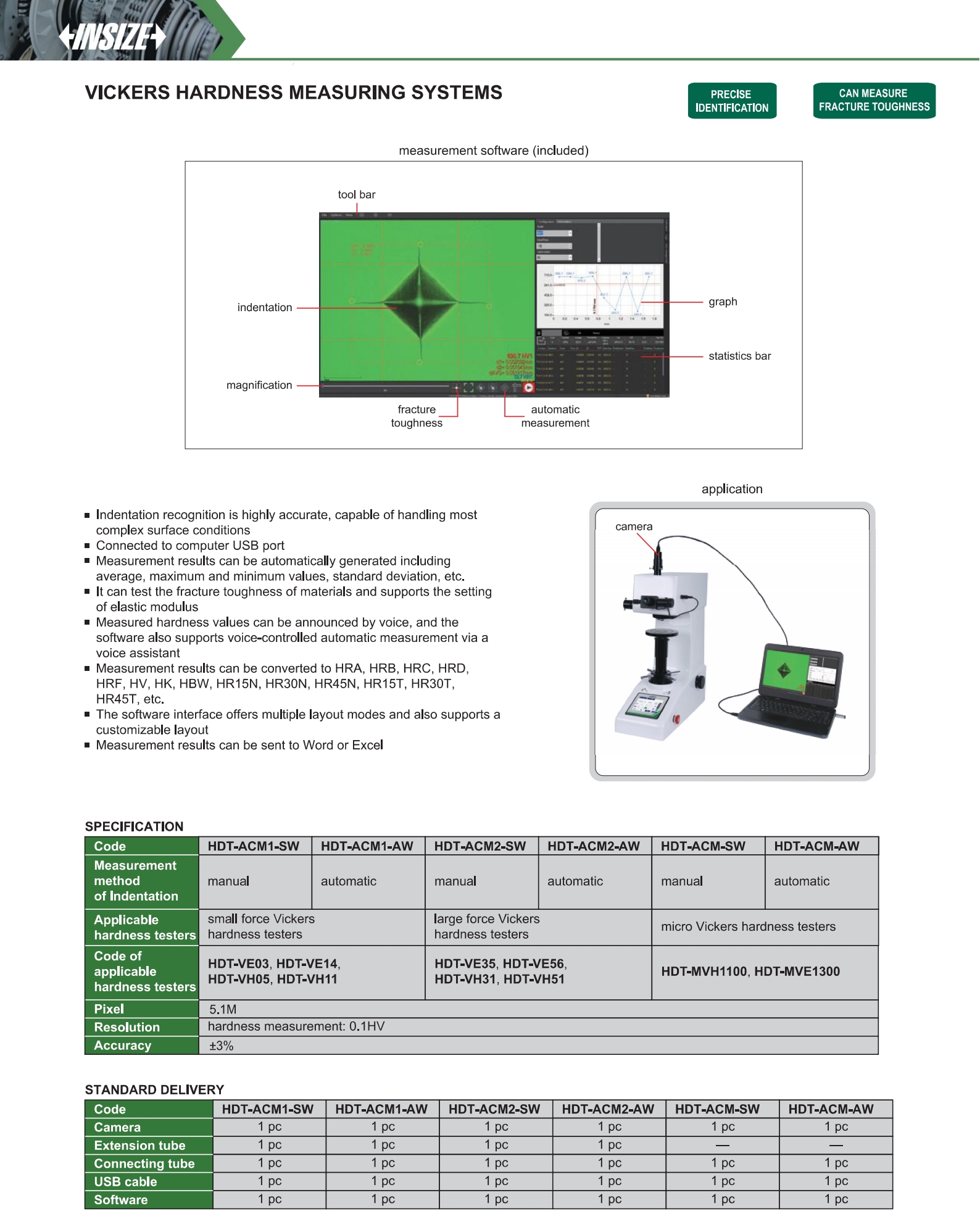

Vickers Hardness Measuring Systems
Code: HDT-ACM Series

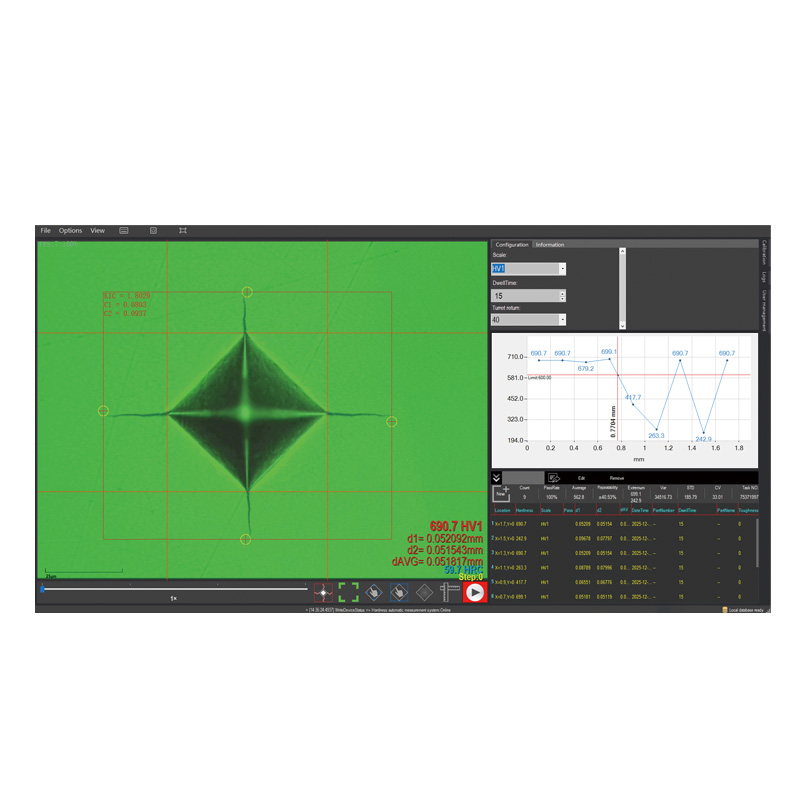

Indentation recognition is highly accurate, capable of handling most complex surface conditions
Connected to computer USB port
Measurement results can be automatically generated including average, maximum and minimum values, standard deviation, etc.
It can test the fracture toughness of materials and supports the setting of elastic modulus
Measured hardness values can be announced by voice, and the software also supports voice-controlled automatic measurement via a voice assistant
Measurement results can be converted to HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, etc.
The software interface offers multiple layout modes and also supports a customizable layout
| Code | Accuracy | Resolution | Measurement method of indentation |
|---|---|---|---|
| HDT-ACM1-SW | ±3% | hardness measurement: 0.1HV | manual |
| HDT-ACM1-AW | ±3% | hardness measurement: 0.1HV | automatic |
| HDT-ACM2-SW | ±3% | hardness measurement: 0.1HV | manual |
| HDT-ACM2-AW | ±3% | hardness measurement: 0.1HV | automatic |
| HDT-ACM-SW | ±3% | hardness measurement: 0.1HV | manual |
| HDT-ACM-AW | ±3% | hardness measurement: 0.1HV | automatic |
