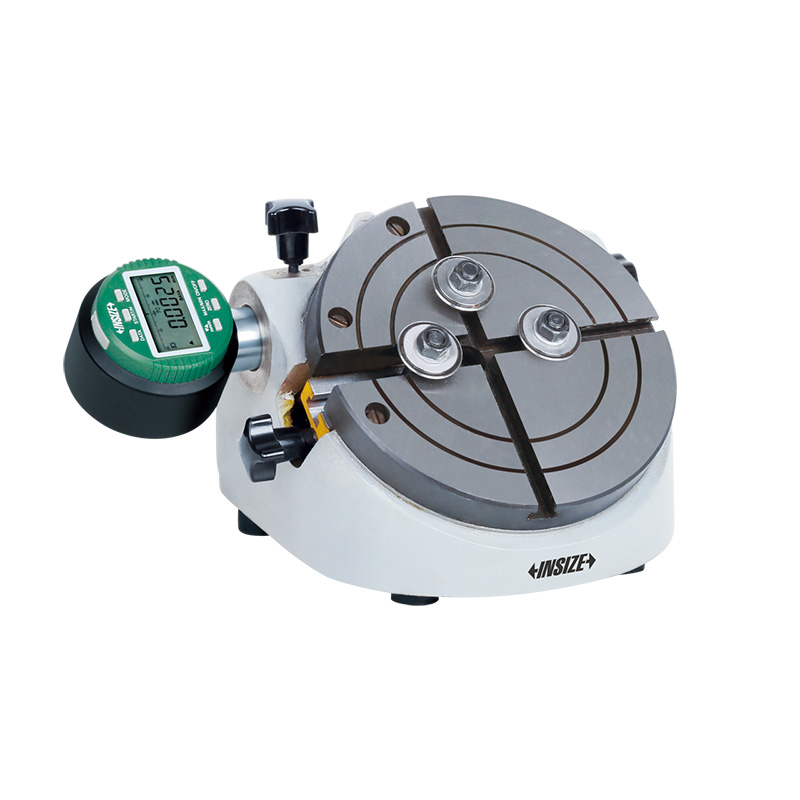

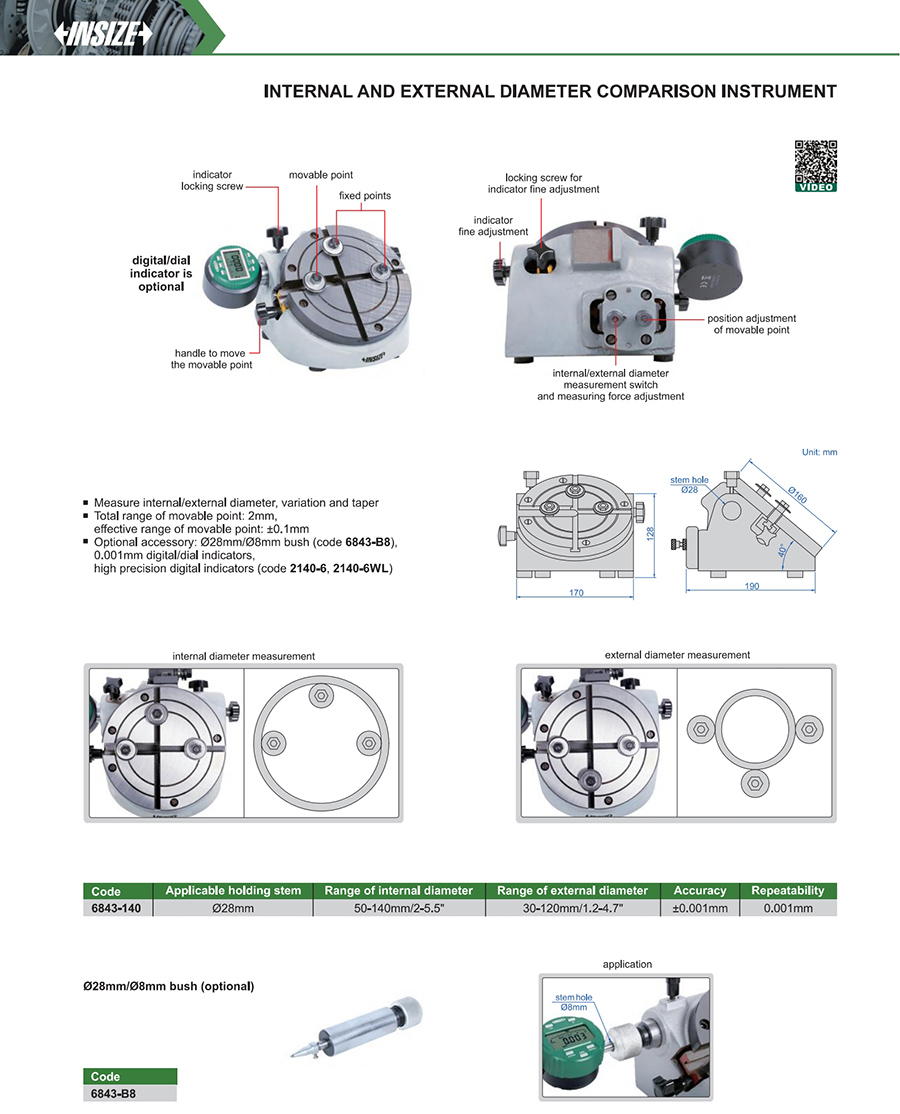

Internal And External Diameter Comparison Instrument
Code: 6843-140
Measure internal/external diameter, variation and taper
Total range of movable point: 2mm, effective range of movable point: ±0.1mm
| Code | Accuracy | Repeatability | Range of external diameter | Range of internal diameter |
|---|---|---|---|---|
| 6843-140 | ±0.001mm | 0.001mm | 30-120mm/1.2-4.7" | 50-140mm/2-5.5" |
